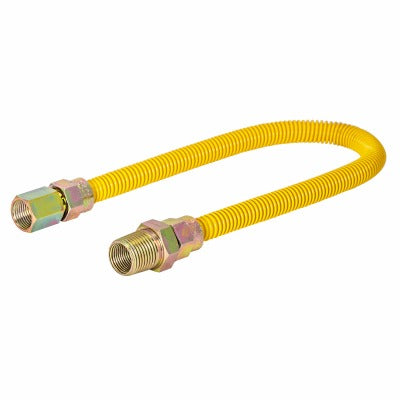

Sharkbite/cash Acme 20YE515124B Gas Connector 24 in

Product Description

The SHARKBITE/CASH ACME 20YE515124B is a 24-inch, 1/2-inch OD flexible gas connector designed to link water heaters, dryers, and moderate-usage gas appliances to a shut-off valve. The connector features DuraCoat Epoxy Coating, which resists corrosion, UV exposure, and chemical stains from common household products. It is certified for use with most water heaters and dryers rated up to 49,100 BTU/h. The assembly includes a 1/2-inch FIP fitting and a 1/2-inch MIP fitting tapped for 3/8-inch FIP, providing flexible connection options straight out of the package. Plumbers and gas service technicians install this connector in both indoor and outdoor applications.

This gas connector is suited for residential installations where a reliable, code-compliant flexible line is required between a gas shut-off valve and an appliance such as a water heater or dryer. The DuraCoat Epoxy Coating makes it appropriate for exposed or semi-exposed locations where moisture, cleaning chemicals, or sunlight may be present. The 24-inch length accommodates standard rough-in distances common in residential utility rooms and laundry spaces. It is approved for indoor and outdoor use, broadening its utility across a range of install scenarios encountered in the field.

Key Features

• 24-inch length with 1/2-inch OD construction for standard residential gas appliance connections
• Certified for water heaters and dryers with gas ratings up to 49,100 BTU/h
• DuraCoat Epoxy Coating resists corrosion, UV rays, and common household chemical stains
• Approved for both indoor and outdoor use
• Includes 1/2-inch FIP fitting and 1/2-inch MIP fitting tapped for 3/8-inch FIP
• Connects most major brands of water heaters, dryers, and moderate-usage gas appliances

Compatibility

Designed to connect most major brands of water heaters and dryers to a gas shut-off valve. Certified for use with gas appliances rated up to 49,100 BTU/h. Fits standard 1/2-inch FIP and 1/2-inch MIP (tapped 3/8-inch FIP) connection points.

Installation Notes

Installation should be performed by a licensed plumber or qualified gas service technician in accordance with local codes and the International Fuel Gas Code (IFGC). Shut off the gas supply at the main valve and verify zero pressure before disconnecting any existing fittings or making new connections. Apply an approved gas-rated thread sealant or tape to all threaded connections and inspect for leaks with an approved leak-detection solution before restoring gas flow. Do not kink, over-bend, or use the connector as a rigid structural support between the appliance and the supply line.
