Sharkbite/cash Acme 20YE515060B Gas Connector 60 in

Product Description

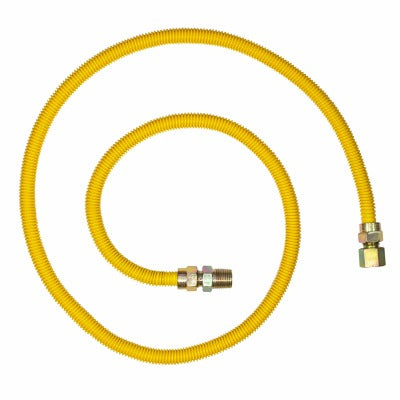

The SHARKBITE/CASH ACME 20YE515060B is a 60-inch, 1/2-inch OD epoxy-coated flexible gas connector designed to link gas-fired water heaters, dryers, and moderate-use appliances to a shut-off valve. The connector carries a certified gas rating of up to 53,200 BTU/h, making it suitable for standard residential appliance loads. A DuraCoat epoxy coating shields the connector from corrosion, UV exposure, and chemical stains from common household products. The kit includes one 60-inch connector, one 1/2-inch FIP fitting, and one 1/2-inch MIP fitting tapped for 3/8-inch FIP. Plumbing and gas service technicians are the primary installers for this type of fitting.

This connector is rated for indoor and outdoor installation and is intended for use with most major brands of residential gas water heaters and dryers. The 1/2-inch OD sizing and dual-fitting configuration cover a wide range of standard residential gas appliance connections. The 60-inch length provides enough flexibility for typical appliance rough-in clearances without requiring additional extensions. It is packaged individually and sold per each unit.

Key Features

• 60-inch length with 1/2-inch OD construction for standard residential gas appliance hookups
• Certified for gas ratings up to 53,200 BTU/h for water heaters and dryers
• DuraCoat epoxy coating resists corrosion, UV rays, and common household chemical stains
• Approved for both indoor and outdoor installation
• Includes 1/2-inch FIP fitting and 1/2-inch MIP fitting tapped to 3/8-inch FIP

Compatibility

Designed to connect most major brands of gas water heaters, dryers, and moderate-use gas appliances to a standard shut-off valve. Certified for use with most water heaters and dryers rated up to 53,200 BTU/h.

Installation Notes

Installation should be performed by a licensed plumber or qualified gas service technician in accordance with local codes and the International Fuel Gas Code (IFGC). Shut off the gas supply at the main valve and verify zero pressure at the connector before beginning work. Do not kink, bend beyond the connector's rated radius, or use pipe dope compounds not approved for use with the fitting material. Leak-test all connections with an approved gas leak detection solution after installation before restoring gas service.
