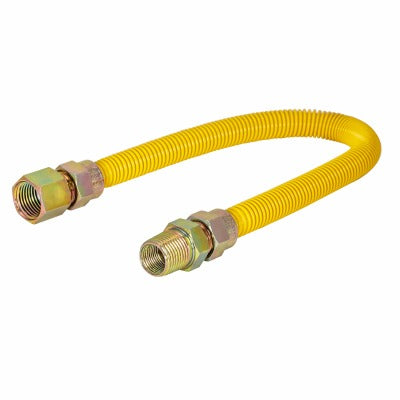

Sharkbite/cash Acme 20YE515024B Gas Connector 24 in

Product Description

The SHARKBITE/CASH ACME 20YE515024B is a 24-inch, 1/2-inch OD epoxy-coated flexible gas connector designed to link residential gas appliances to a shutoff valve. It carries a certified gas rating of up to 85,000 BTU/h, making it suitable for water heaters, dryers, and moderate-usage appliances. The DuraCoat epoxy coating provides corrosion resistance and protection against UV rays and common household chemical stains. Licensed plumbers and gas fitters install this connector as part of a standard appliance hookup. The kit includes the connector, a 1/2-inch FIP fitting, and a 1/2-inch MIP fitting tapped for 3/8-inch FIP.

This connector is intended for residential gas appliance installations where a 1/2-inch OD flexible line is required between a shutoff valve and the appliance supply port. Typical applications include natural gas and propane water heaters and clothes dryers. The DuraCoat epoxy finish is approved for both indoor and outdoor installations, expanding its usable range beyond strictly interior utility rooms. The 24-inch length provides adequate reach for most standard appliance setups where the shutoff valve is in close proximity to the appliance connection point.

Key Features

• Certified for gas ratings up to 85,000 BTU/h for water heaters and dryers
• DuraCoat epoxy coating resists corrosion, UV exposure, and common chemical stains
• Approved for indoor and outdoor use
• 1/2-inch OD construction with 1/2-inch FIP and 1/2-inch MIP (tapped 3/8-inch FIP) end fittings included
• 24-inch flexible length for standard appliance-to-shutoff connections
• Designed for compatibility with most major appliance brands

Compatibility

Designed to connect most major brands of water heaters, dryers, and moderate-usage gas appliances to a shutoff valve. Certified for use with most water heaters and dryers with gas ratings up to 85,000 BTU/h.

Installation Notes

Installation should be performed by a licensed plumber or qualified gas fitter in accordance with local codes and IFGC requirements. Shut off the gas supply at the meter or main shutoff before beginning any connection work. Do not over-tighten fittings; use an appropriate pipe wrench and thread sealant rated for gas service. After installation, test all connections with an approved leak-detection solution before restoring gas supply.
