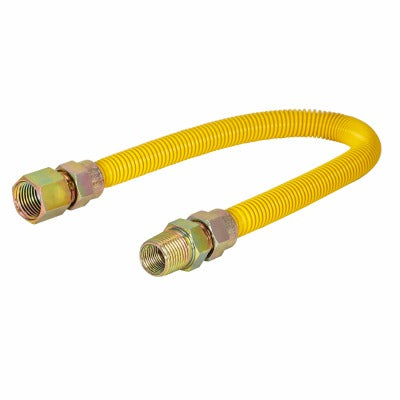

Sharkbite/cash Acme 20YE515018B Gas Connector 18 in

Product Description

The SHARKBITE/CASH ACME 20YE515018B is an 18-inch, 1/2-inch OD flexible gas connector designed to link water heaters, dryers, and moderate-usage gas appliances to a shutoff valve. The connector carries a gas rating up to 93,100 BTU/h, making it appropriate for standard residential appliance connections. It features DuraCoat epoxy coating for corrosion resistance, protection against chemical stains from common household products, and UV resistance. The coating is approved for both indoor and outdoor installations. This connector is intended for installation by licensed plumbers or gas fitters working on residential appliance hookups.

This gas connector is suited for residential installations where a water heater, clothes dryer, or similar moderate-usage appliance requires a flexible connection to a gas shutoff valve. The 18-inch length provides working clearance in typical appliance alcoves and utility closets. The package includes one 18-inch 1/2-inch OD epoxy-coated gas connector, one 1/2-inch FIP fitting, and one 1/2-inch MIP fitting tapped for 3/8-inch FIP, covering common appliance and valve connection configurations right out of the box.

Key Features

• Rated for gas appliances up to 93,100 BTU/h
• DuraCoat epoxy coating resists corrosion, UV exposure, and common household chemical stains
• Approved for indoor and outdoor use
• Includes 1/2-inch FIP fitting and 1/2-inch MIP fitting tapped for 3/8-inch FIP
• 1/2-inch OD flexible construction for easy routing in tight utility spaces
• 18-inch length accommodates standard appliance clearance requirements

Compatibility

Designed to connect most major brands of water heaters, dryers, and moderate-usage gas appliances to a shutoff valve. Certified for use with most water heaters and dryers with gas ratings up to 93,100 BTU/h.

Installation Notes

Installation must be performed by a licensed plumber or qualified gas fitter in accordance with local codes and IFGC requirements. Shut off the gas supply at the main valve and verify zero pressure before disconnecting or connecting any fittings. Do not over-bend or kink the flexible connector during routing, and do not use pipe thread sealant incompatible with gas service. Leak-test all connections with an approved gas leak detection solution after installation before restoring gas flow.
