Sharkbite/cash Acme 20YE50V048B Gas Connector 48 Inches

Product Description

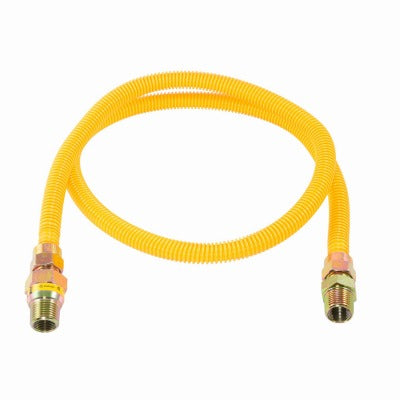

The SHARKBITE/CASH ACME 20YE50V048B is a coated stainless steel flexible gas connector designed for connecting gas appliances to supply lines in residential and light commercial installations. Measuring 0.5 inches OD and 48 inches in length, it features 0.5 inch MIP fittings on both ends, each tapped for 3/8 inch FIP connections, giving installers flexible thread options at both the appliance and the supply side. A built-in ArmorBoost Excess Flow Valve provides an added layer of safety by restricting gas flow automatically in the event of a line rupture or high-flow condition. The stainless steel construction with protective coating resists corrosion and mechanical damage in typical appliance installation environments.

This connector is suited for connecting natural gas or liquid propane appliances such as ranges, dryers, water heaters, and furnaces to wall or floor gas supply outlets. The 48 inch length accommodates standard residential appliance setups where the supply outlet is not immediately adjacent to the appliance connection point. The dual-thread fitting design supports both 0.5 inch MIP and 3/8 inch FIP connections without requiring additional adapters in most configurations.

Key Features

• 0.5 inch OD x 48 inch length coated stainless steel flexible construction
• 0.5 inch MIP x 0.5 inch MIP end fittings, each tapped for 3/8 inch FIP
• ArmorBoost Excess Flow Valve restricts flow automatically during high-flow fault conditions
• Protective coating over stainless steel body resists corrosion and surface damage
• Dual-thread fitting eliminates need for separate adapters in most residential hookups

Compatibility

Designed as an OEM-style replacement or new-installation gas connector for residential and light commercial gas appliances requiring a 0.5 inch OD flexible stainless steel connector with 0.5 inch MIP or 3/8 inch FIP end connections.

Installation Notes

Gas connector installation should be performed by a licensed plumber or gas fitter in accordance with local codes and the International Fuel Gas Code (IFGC). Shut off the gas supply at the shutoff valve before disconnecting or connecting any fittings. Apply a gas-rated thread sealant or tape to all threaded connections and verify with a leak detection solution after restoring gas flow. Never route a flexible gas connector through walls, floors, ceilings, or concealed spaces.
