Sharkbite/cash Acme 20BE52515024K Gas Log Installation Kit

Product Description

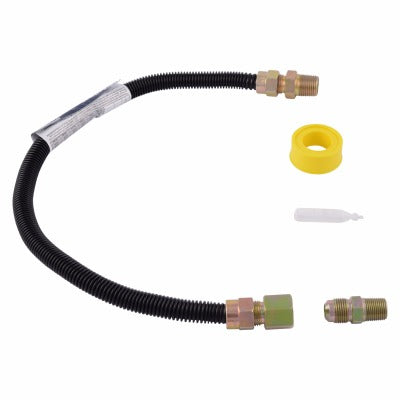

The SHARKBITE/CASH ACME 20BE52515024K is a complete gas log installation kit designed to supply natural gas or propane from a shutoff valve to a gas log fireplace insert. The kit centers on a 3/8 inch I.D. by 24 inch black epoxy coated stainless steel flexible gas connector, supported by a matched set of steel fittings that handle the transition from the supply line to the appliance inlet. Pipe thread sealant and a liquid leak detector are included so the installing technician has everything needed to complete a code-compliant, leak-tested connection in a single trip. Approved for both indoor and outdoor use.

This kit is intended for residential and light-commercial gas log fireplace installations where a 3/8 inch I.D. flexible connector and 1/2 inch O.D. steel fittings are specified. The included fittings cover the most common transition configurations: a 1/2 inch O.D. by 1/2 inch MIP fitting tapped for 3/8 inch FIP, a 1/2 inch O.D. by 1/2 inch FIP steel fitting, and a 1/2 inch O.D. by 3/8 inch MIP steel fitting. Plumbers and gas fitters installing vented or vent-free gas log sets in fireplaces will find this kit covers the standard connection hardware without sourcing individual components.

Key Features

• 3/8 inch I.D. by 24 inch flexible gas connector with black epoxy coating over stainless steel construction
• Three steel fittings included to cover common 1/2 inch O.D. supply-to-appliance transitions
• Pipe thread sealant included for leak-free threaded connections
• Liquid leak detector included for post-installation pressure verification
• Approved for indoor and outdoor installation environments
• Complete kit reduces the need for separate component sourcing on the job

Compatibility

Designed as an OEM-style replacement and new-installation kit for residential gas log fireplace appliances requiring a 3/8 inch I.D. flexible gas connector with 1/2 inch O.D. steel fitting transitions.

Installation Notes

Installation must be performed by a licensed plumber or qualified gas fitter in accordance with local codes and IFGC requirements. Shut off the gas supply at the main valve and verify zero pressure at the work point before making any connections. Apply pipe thread sealant to all male threads and torque fittings hand-tight plus wrench-snug — do not over-torque steel fittings. After completing all connections, use the included leak detector fluid on every joint and restore gas pressure to confirm a bubble-free seal before lighting the appliance.
