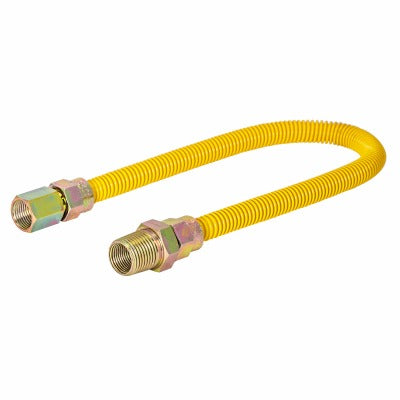

Sharkbite/cash Acme 10YE515024 Gas Connector 24 in

Product Description

The SHARKBITE/CASH ACME 10YE515024 is a 24-inch, 3/8-inch OD epoxy-coated flexible gas connector rated for appliances up to 40,000 BTU/h. It is designed to connect gas log kits, space heaters, and similar low-usage gas appliances to a shut-off valve. The connector features DuraCoat epoxy coating, which resists corrosion, common household chemical stains, and UV exposure. This coating qualifies the connector for both indoor and outdoor installations. Plumbers and gas fitters install this type of connector during appliance hookup or retrofit work where a flexible, corrosion-resistant line is required.

This connector is suited for residential installations involving gas logs, space heaters, and other low-usage gas appliances connected to a standard shut-off valve. The 3/8-inch OD sizing targets lower-demand appliances rather than high-BTU equipment. The included fitting set covers both FIP and MIP connections, giving the installer flexibility at the appliance and valve end without sourcing additional adapters. Each package contains 25 units, making it appropriate for plumbing supply houses and contractors stocking for multiple jobs.

Key Features

• 24-inch length with 3/8-inch OD flexible construction for gas log and space heater connections
• Rated up to 40,000 BTU/h, certified for most gas logs and space heaters
• DuraCoat epoxy coating resists corrosion, UV rays, and common household chemical stains
• Approved for indoor and outdoor use
• Includes one 1/2-inch FIP fitting and one 1/2-inch MIP fitting (tapped 3/8-inch FIP) for installation flexibility
• Sold in a package quantity of 25 units

Compatibility

Designed to connect most major brands of gas log kits, space heaters, and low-usage appliances to a shut-off valve. Certified for use with most gas logs and space heaters with gas ratings up to 40,000 BTU/h.

Installation Notes

This connector is installed by licensed plumbers or gas fitters in accordance with local gas codes and IFGC requirements. Shut off the gas supply at the main valve and verify zero pressure in the line before making any connections. Do not over-bend or kink the flexible connector during routing, and ensure all fittings are properly threaded and leak-tested with an approved gas leak detection solution after installation. Indoor and outdoor installations should comply with local jurisdiction requirements.
