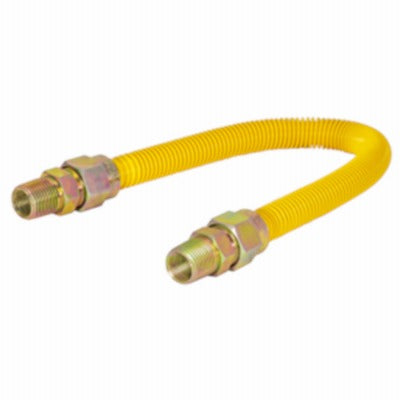

Sharkbite/cash Acme 10YE50V048B Gas Connector 48 Inches

Product Description

The SHARKBITE/CASH ACME 10YE50V048B is a thermal excess flow valve gas connector designed for residential and light commercial gas appliance installations. It features a 1/2 inch MIP tapped inlet with dual 3/8 inch FIP outlets and measures 48 inches in length. The flexible tube has a 1/4 inch inner diameter and a 3/8 inch outer diameter, constructed from epoxy coated stainless steel for corrosion resistance. This connector is approved for both indoor and outdoor use, making it suitable for a wide range of gas appliance hookup scenarios. Licensed plumbers and gas fitters are the primary installers of this component.

This gas connector is used to connect natural gas or liquid propane appliances to supply lines in residential and light commercial settings. Typical applications include gas ranges, dryers, water heaters, and similar appliances where a flexible connection between the rigid supply line and the appliance inlet is required. The thermal excess flow valve feature provides an additional layer of safety by responding to abnormal flow conditions. The 48 inch length gives installers adequate reach in standard appliance alcoves and utility spaces.

Key Features

• Thermal excess flow valve integrated into the connector for added safety
• Epoxy coated stainless steel construction for corrosion resistance indoors and outdoors
• 1/2 inch MIP tapped inlet with dual 3/8 inch FIP connections
• 1/4 inch inner diameter and 3/8 inch outer diameter flexible tube
• 48 inch length provides installation flexibility in tight spaces
• Approved for both indoor and outdoor use

Compatibility

Designed as an OEM-style replacement or new-install gas connector for residential and light commercial gas appliances requiring a 1/2 inch MIP supply connection with 3/8 inch FIP outlet fittings.

Installation Notes

Installation should be performed by a licensed plumber or qualified gas fitter in accordance with local codes and the International Fuel Gas Code (IFGC). Shut off the gas supply at the meter or main shutoff valve before disconnecting or connecting any gas line components. Use an approved thread sealant rated for gas service on all threaded connections and verify all joints with a leak-detection solution after restoring gas pressure. Do not kink, stretch, or over-bend the flexible tube during installation.
