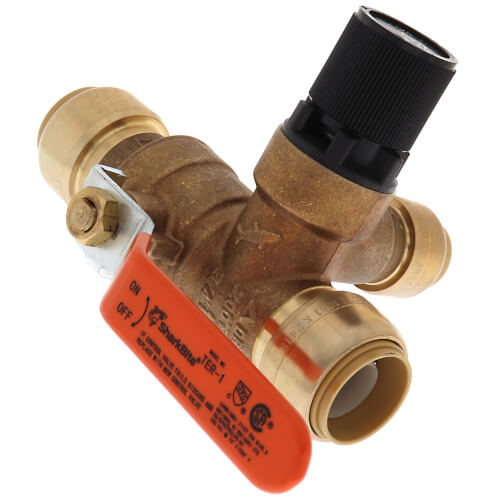

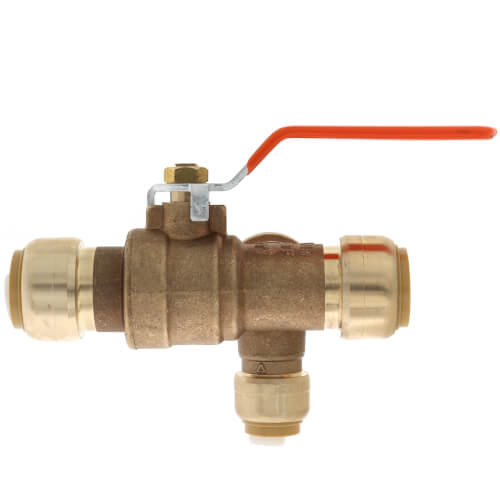

Sharkbite 25704LF Thermal Expansion Relief Valve 3/4 Inch Ball Valve Connect 1/2 Inch Relief Discharge Connect

Product Description

Sharkbite 25704LF is a lead-free thermal expansion relief valve that features a three-quarter inch ball valve connection and a half-inch relief discharge connection. This valve is designed for plumbing systems to prevent excessive pressure from thermal expansion.

• Includes a pressure relief valve set to relieve at 125 psi.
• Compatible with various piping materials such as PEX, copper, CPVC, PE-RT, and HDPE.
• Easy installation with no special tools required.

Product Highlights

This product eliminates the need for a separate expansion tank while ensuring optimal performance in hot water supply systems.

Product Information

Standard Information

• Brand: Sharkbite
• MPN: 25704LF

Technical Specifications

• Nominal Size: 3/4 inch
• Body Material: Lead Free DZR Brass
• Pressure Rating: 200 psi
• Temperature Rating: 93 degrees C
• Inlet Pressure: Maximum 200 psi
• Relief Pressure: 125 psi
• Weight: 1.3 lb
• Warranty: 5 years
