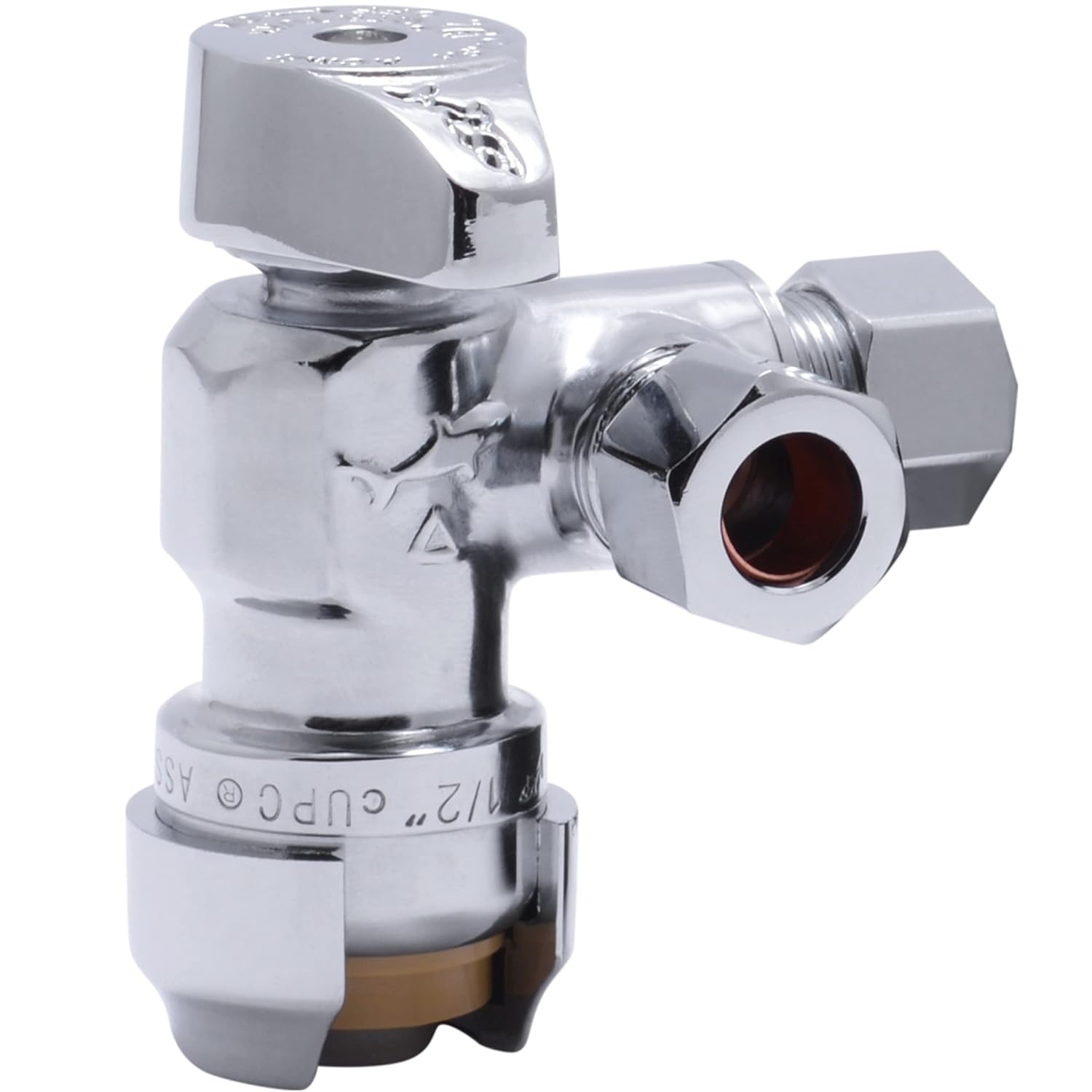

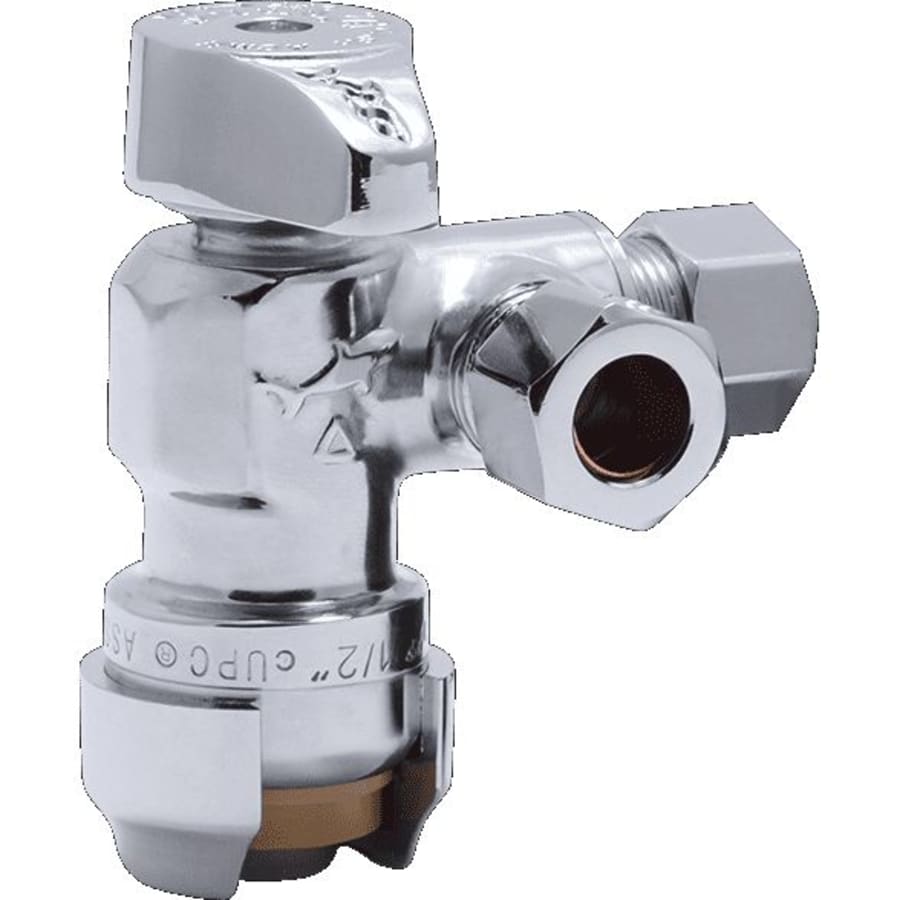

Sharkbite 25558LF 1/2 x 3/8 Inch Compression Dual Outlet Angle Stop Valve Quarter Turn

Product Description

The SHARKBITE 25558LF 1/2 x 3/8 Inch Compression Dual Outlet Angle Stop Valve features a quarter turn and push-to-connect design. This brass plumbing fitting is compatible with PEX Pipe, PE-RT, CPVC, and Copper Pipe. It controls water flow to household plumbing fixtures, allowing two independent supply lines to be attached to a single stop valve.

• 1/2 x 3/8 Inch Compression Dual Outlet Angle Stop Valve
• Quarter Turn
• Push to Connect Brass Plumbing Fitting

Product Highlights

This valve is ideal for controlling water flow to plumbing fixtures, enabling two supply lines from one stop valve with its push-to-connect design.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: 25558LF
• Country of Origin: Import

Technical Specifications

• Color: Brass
• Usage: Controls water flow to household plumbing fixtures and allows two independent supply lines to be attached to one single stop valve.
• Finish: Brass
• Material: Quarter-turn full-port brass ball valve
• Valve Type: Ball Valve
• Exterior Finish: Brass
• Measurement System: Inch
• Batteries Included?: No
• Batteries Required?: No
• Included Components: 1 Fitting
• Inlet Connection Type: Compression
• Outlet Connection Size: 0.38 Inches
• Outlet Connection Type: PEX
• Actuation Type: 1/4 Turn
• Applicable Standard: ASME A112.18.1, CSA B125.1-12, NSF/ANSI/CAN 61, NSF/ANSI 372, IAMPO, CUPC
• Body Material: Brass
• Catalog Number: 25558LF
• Nominal Size: 1/2 Inch x 3/8 Inch x 3/8 Inch
• Pressure Rating: 200 PSI
• Temperature Rating: 200 Deg F
• Type: Dual Outlet Angle
• UNSPSC Code: 40141600
• Inlet Size: 1/2"
• Outlet Size: 3/8"
• Outside Diameter: 3/8"
• Max Temp (F): 200°F
• Max Pressure (PSI): 200
• Media: Water
• Temperature Range: 160 deg F
• Brand: SharkBite
• Lead-Free: Lead-Free
• Used with: PEX, Copper, CPVC, PE-RT and HDPE Pipe
• Manufacturer: Cash Acme
• Model / MPN: 25558LF
• Mfg Standards/Approvals: IAPMO, ASSE 1061/NSF 61, UPC, IPC, cUPC
• Size: 1/2 in Angle Stop x 3/8 in x 3/8 in OD
• Suitable For Use With: Copper, PEX, CPVC, or PE-RT Pipes
• SKU: 25558LF
• Pipe Size: 1/2 in. Angle Stop x 3/8 in. x 3/8 in. OD Comp Dual Outlet Stop
• Approvals & Listings: ASME A112.18.1, CSA B125.1-12, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372
• Domestic/Import: Import
• End Style: Compression
• Internet #: 325997230
• Model #: UR25558
• Brand Name: Sharkbite
• ANSI Approved: Yes
• Brand / Model Compatibility: Compatible with PEX, Copper, CPVC & PE-RT SDR-9 HDPE Pipe
• Country of Origin: China
• Indoor / Outdoor: Indoor
• MFG Part # (OEM): 25558LF
• Package Contents: Dual Outlet Angle Stop
• Product Condition: New
• Restrictions: CA Prop 65
• Water Connection: 1/2"
• Approved for Commercial Use: Yes
• Lead Leaching Certified NSF/ANSI 61: Yes
