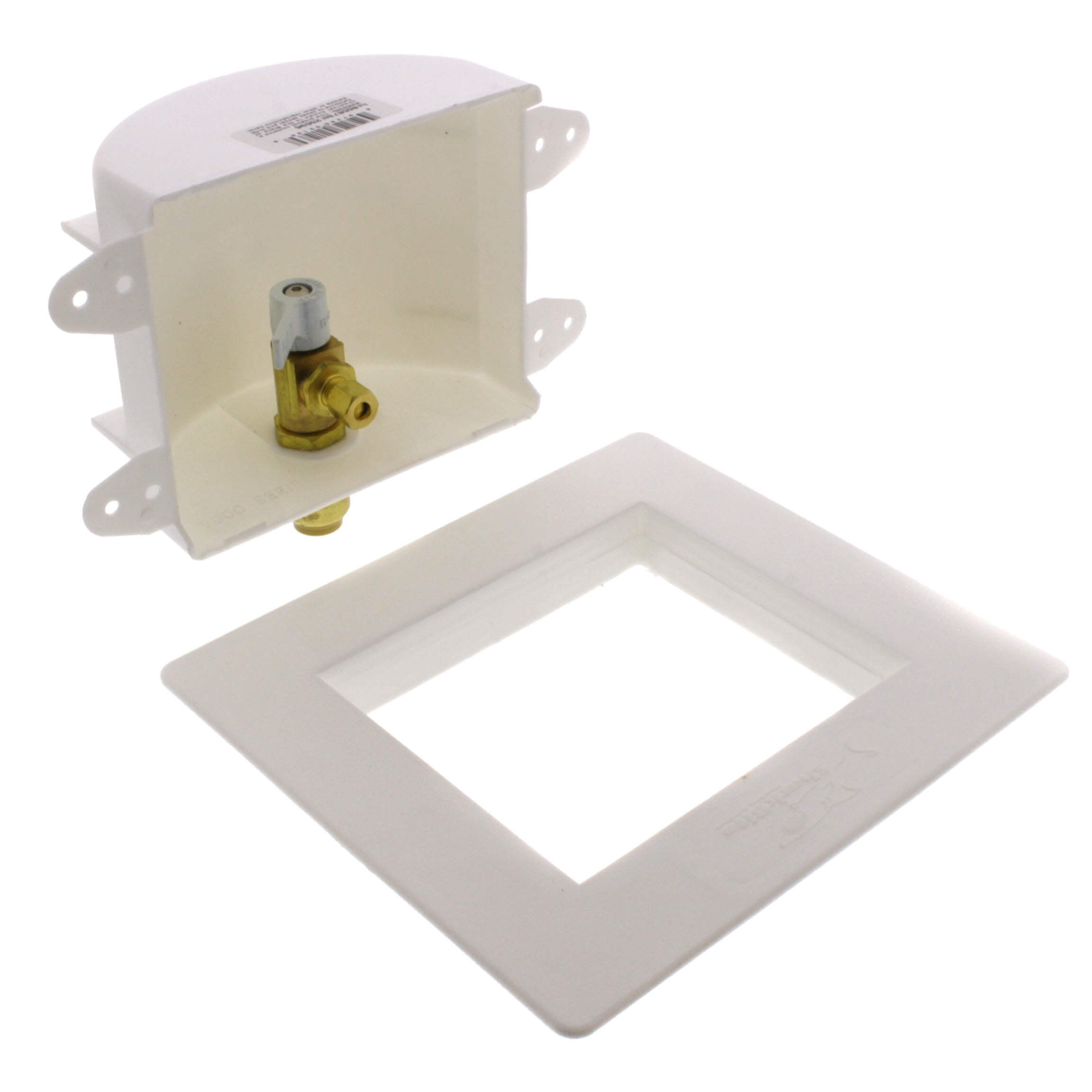

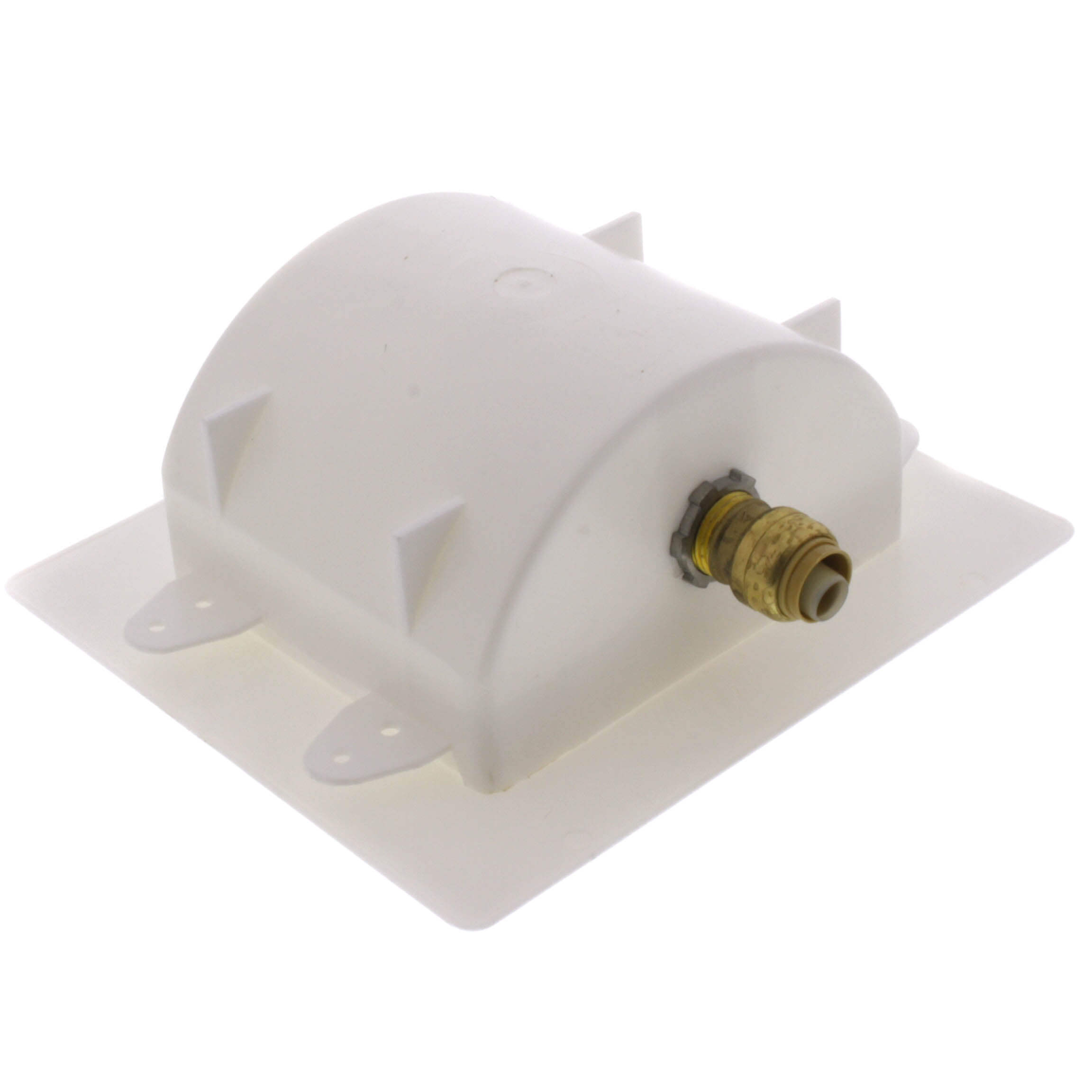

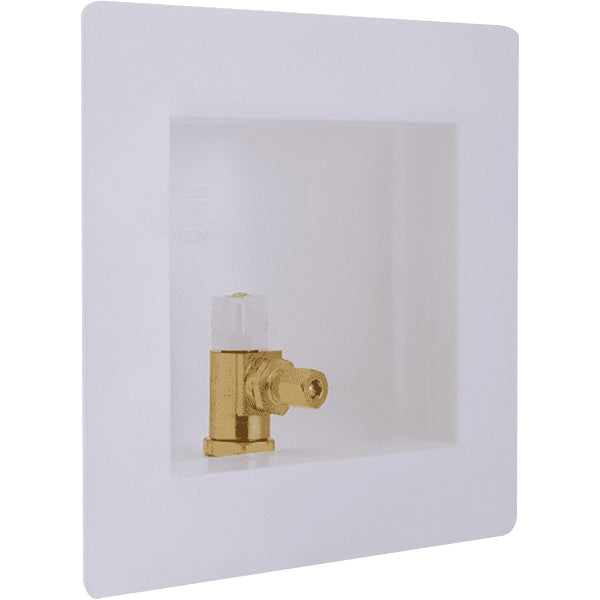

SharkBite 25096 Ice Maker Outlet Box 1/2 x 1/4 Compression

Product Description

SharkBite 25096 is an ice maker outlet box designed for efficient water supply to ice maker appliances. This outlet box features a half-inch SharkBite connection and a quarter-inch compression outlet. It is made of lead-free DZR brass, ensuring durability and compliance with plumbing regulations.

• Compatible with copper, CPVC, PEX, and PE-RT.
• Integrated water hammer arrestor option available.
• Easy installation without the need for soldering or clamps.

Product Highlights

This outlet box allows for a quick quarter-turn shut-off for easy maintenance and is suitable for both residential and commercial use.

Product Information

Standard Information

• Brand: SharkBite
• MPN: 25096

Technical Specifications

• Connection Size: 1/2 x 1/4 in
• Connection Type: Push-Fit x Compression
• Material: Brass
• Max Pressure: 200 psi
• Max Temperature: 200 degrees F
• Overall Dimensions: 8-1/4 in x 17-15/16 in
• Weight: 0.83 lbs
• Application: Ice Maker Supply
