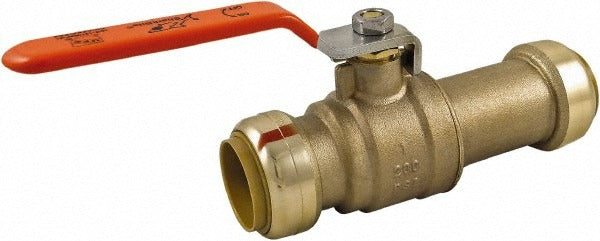

Sharkbite 24737LF 1 Inch Ball Valve Push-to-connect Brass

Product Description

The SHARKBITE 24737LF is a standard manual ball valve designed for shutoff and flow control in potable water systems. Built with a brass body, brass trim, and brass seat, this valve connects on both ends via push-to-connect fittings, eliminating the need for soldering, threading, or gluing during installation. It handles a maximum working pressure of 200 psi and a maximum working temperature of 200 degrees F, making it suitable for a wide range of residential and light commercial plumbing applications. The PTFE seal material supports reliable shutoff performance. Certified lead free, this valve meets NSF/ANSI/CAN 61 and NSF/ANSI 372 standards for use with potable water.

This valve is used in residential and light commercial plumbing systems where a quick, reliable shutoff is required on a 1-inch water line. The push-to-connect end connections on both sides allow for fast installation in supply lines, branch runs, and isolation points without specialty tools. Plumbers and pipefitters commonly use this valve when retrofitting existing systems or completing new rough-in work where minimizing torch work is a priority. It is rated for potable water service and is appropriate wherever code-compliant, lead-free components are required.

Key Features

• Push-to-connect x push-to-connect end connections on both ends for tool-free installation
• Brass body, trim, and seat for durability in water service
• PTFE seat seal for positive shutoff and long service life
• Rated to 200 psi maximum working pressure and 200 degrees F maximum working temperature
• Lead free construction meets NSF/ANSI 372 requirements
• Certified to IAPMO/ANSI Z1157 and NSF/ANSI/CAN 61 for potable water applications

Compatibility

Designed for use with potable water applications on 1-inch pipe with push-to-connect compatible tubing. Consult SHARKBITE compatibility guidelines to confirm suitable pipe materials and wall dimensions before installation.

Installation Notes

Installation is performed by licensed plumbers or qualified pipefitters in accordance with local plumbing codes and the IPC. Shut off the water supply and depressurize the line before installing or removing the valve. Ensure pipe ends are cut cleanly, deburred, and free of moisture before inserting into push-to-connect fittings. Do not exceed the rated pressure or temperature limits for this valve.
