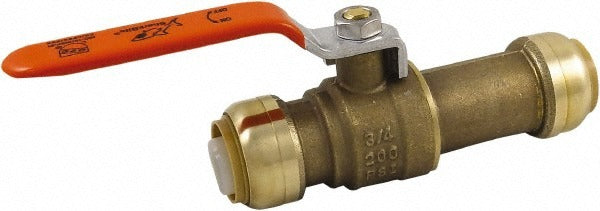

Sharkbite 24736LF 3/4 Inch Ball Valve Push-to-connect Brass

Product Description

The SHARKBITE 24736LF is a standard manual ball valve designed for 3/4 inch push-to-connect plumbing installations. The valve body and trim are constructed from lead-free brass, with a PTFE (polytetrafluoroethylene) seal and brass seat that deliver reliable shutoff performance. It handles a maximum working pressure of 200 psi and a maximum working temperature of 200 degrees F, making it suitable for a wide range of residential and light commercial water service applications. Licensed plumbers and water service technicians install this valve where a durable, code-compliant quarter-turn shutoff is required on copper, CPVC, or PEX lines within the accepted push-to-connect size range.

This valve is intended for potable water applications and is rated lead-free in compliance with applicable federal and state standards. Its push-to-connect end connections on both inlet and outlet allow for fast, tool-free installation without soldering, threading, or crimping. The standard port design provides consistent flow characteristics across the 3/4 inch line size. It is well-suited for service valves on water heaters, fixture supply lines, irrigation zone controls, and other shutoff points where frequent access is anticipated.

Key Features

• Lead-free brass body and trim meet federal low-lead requirements for potable water service
• Push-to-connect x push-to-connect end connections allow no-solder, no-thread installation
• Rated to 200 psi maximum working pressure and 200 degrees F maximum working temperature
• PTFE seal material provides low-torque operation and long-term sealing reliability
• Certified to IAPMO/ANSI Z1157, NSF/ANSI 372, and NSF/ANSI/CAN 61
• Quarter-turn manual operation for quick open/close shutoff

Compatibility

Designed for potable water applications on 3/4 inch push-to-connect plumbing systems. Compatible with copper, CPVC, and PEX tubing within the push-to-connect connection type for this size range, as noted by the manufacturer for potable water service.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the IPC or applicable state equivalents. Shut off the water supply and relieve system pressure before installing or removing the valve. Tubing ends must be cut cleanly and deburred before insertion into the push-to-connect fittings to ensure a proper seal. Do not exceed the rated pressure or temperature limits stated for this valve.
