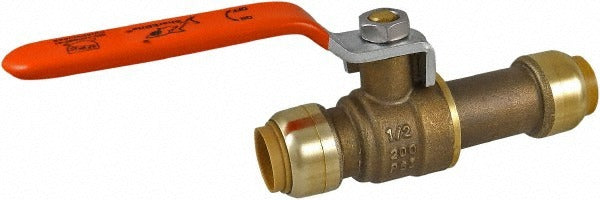

Sharkbite 24735LF Ball Valve 1/2 in Push-to-connect

Product Description

The SHARKBITE 24735LF is a standard manual ball valve designed for 1/2-inch push-to-connect plumbing systems. Built with a full brass body, brass trim, and brass seat, this valve provides reliable shutoff for potable water lines without requiring soldering, threading, or special tools. The push-to-connect fittings on both ends allow for fast, tool-free installation in tight spaces. It is rated for a maximum working pressure of 200 psi and a maximum working temperature of 200 degrees F, making it well-suited for residential and light commercial domestic water distribution. The PTFE seal material ensures a leak-free seat over repeated cycles.

This valve is intended for use in potable water applications including domestic hot and cold supply lines, fixture shutoffs, and general plumbing distribution. Its push-to-connect end connections on both inlet and outlet allow licensed plumbers and experienced trade installers to make quick connections to compatible copper, CPVC, or PEX tubing without soldering or crimping. The compact form factor — 6.1 inches in length and 1.13 inches in height — fits within standard wall cavities and utility spaces.

Key Features

• Push-to-connect x push-to-connect end connections for tool-free installation
• Brass body, trim, and seat construction for corrosion resistance in water service
• PTFE seal material for durable, low-friction shutoff
• 200 psi maximum working pressure rated
• 200 degrees F maximum working temperature rated
• Lead-free construction meeting NSF/ANSI/CAN 61 and NSF/ANSI 372 standards

Compatibility

Designed for potable water applications with push-to-connect compatible tubing. Meets IAPMO/ANSI Z1157, NSF/ANSI 372, and NSF/ANSI/CAN 61 standards for use in drinking water systems.

Installation Notes

This valve is installed by licensed plumbers working on domestic water supply systems. Shut off the water supply and depressurize the line before installation. Push-to-connect fittings require clean, burr-free tube ends cut to proper depth — follow the manufacturer's insertion depth markings. Verify local plumbing code compliance under IPC or applicable regional standards before placing the valve in service.
