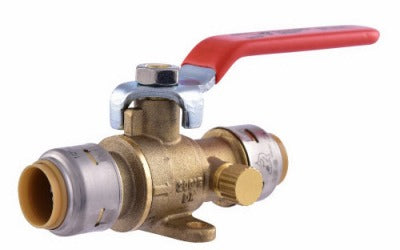

Sharkbite 24615-0000LFA 1/2 Inch Ball Valve Drain Push Fit

Product Description

The SHARKBITE/CASH ACME 24615-0000LFA is a 1/2 inch lead-free ball valve with integral drain, designed for push-fit installation on copper tubing CTS, CPVC, and PEX systems. Constructed from DZR brass, it handles working pressures up to 200 psi at temperatures up to 200 degrees F without soldering or special tools. An integral tube liner is included to ensure a reliable seal on PEX tubing. Licensed plumbers and mechanical contractors install this valve where a shutoff with drain capability is needed, such as isolation points on water distribution branches, appliance supply lines, or winterization drain-down locations.

This valve is suited for residential and commercial potable water and hydronic water distribution systems. Its push-fit end connections accept copper tubing CTS, CPVC, and PEX in the 1/2 inch size, making it a versatile choice for retrofit and new-construction plumbing. It is certified for underground applications as a manufactured joint, eliminating the requirement for access panels at buried connections. This reduces installation time and materials cost on below-grade runs.

Key Features

• Push-fit connection accepts copper CTS, CPVC, and PEX — no solder, clamps, or crimping required
• Integral tube liner included for reliable PEX connections
• DZR brass construction resists dezincification in aggressive water conditions
• Rated to 200 psi and 200 degrees F
• Certified for underground installation as a manufactured joint without access panels
• Lead-free compliant per Federal Law 111-380

Compatibility

Designed for use with 1/2 inch copper tubing CTS, CPVC, and PEX pipe in potable water and hydronic water distribution applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with IPC, UPC, or locally adopted plumbing codes. Shut off the water supply and depressurize the system before connecting or disconnecting the valve. Tubing ends must be cut square, deburred, and inserted to the full depth mark before the fitting locks. For PEX installations, confirm the integral tube liner is seated in the tubing end prior to insertion.
