Sharkbite 24549 HG110-D with Integrated SharkBite Connections

Product Description

The SharkBite 24549 HG110-D is a thermostatic mixing valve with integrated SharkBite connections. It provides a controlled water temperature output while ensuring safety against legionella bacteria. This valve is ideal for both domestic and commercial hot water distribution.

• Compatible with 3/4 inch connections
• Pressure rating of 230 psi
• Temperature range from 85 to 130 degrees Fahrenheit

Product Highlights

This valve is designed for efficient temperature control at the source of heat. It can be used in various applications including sinks, lavatories, and gang showers.

Product Information

Standard Information

• Manufacturer: CASH ACME
• Series: HG110-D

Technical Specifications

• Body Material: Bronze

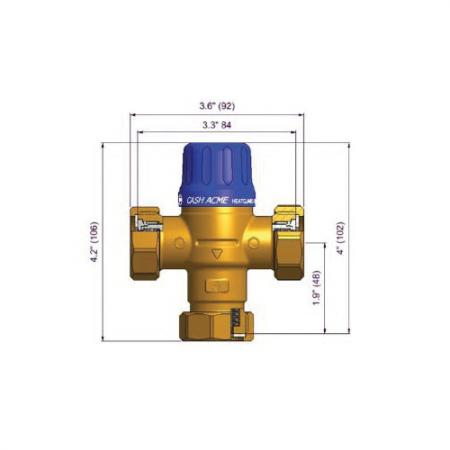

• Dimensions: 5.89 inches long x 5.34 inches high
• Flow Rate: 1 to 20 gpm
• Inlet Connection: 3/4 inch
• Outlet Connection: 3/4 inch
• Pressure Rating: 230 psi
• Temperature Rating: 85 to 130 degrees Fahrenheit
• Country of Origin: US
