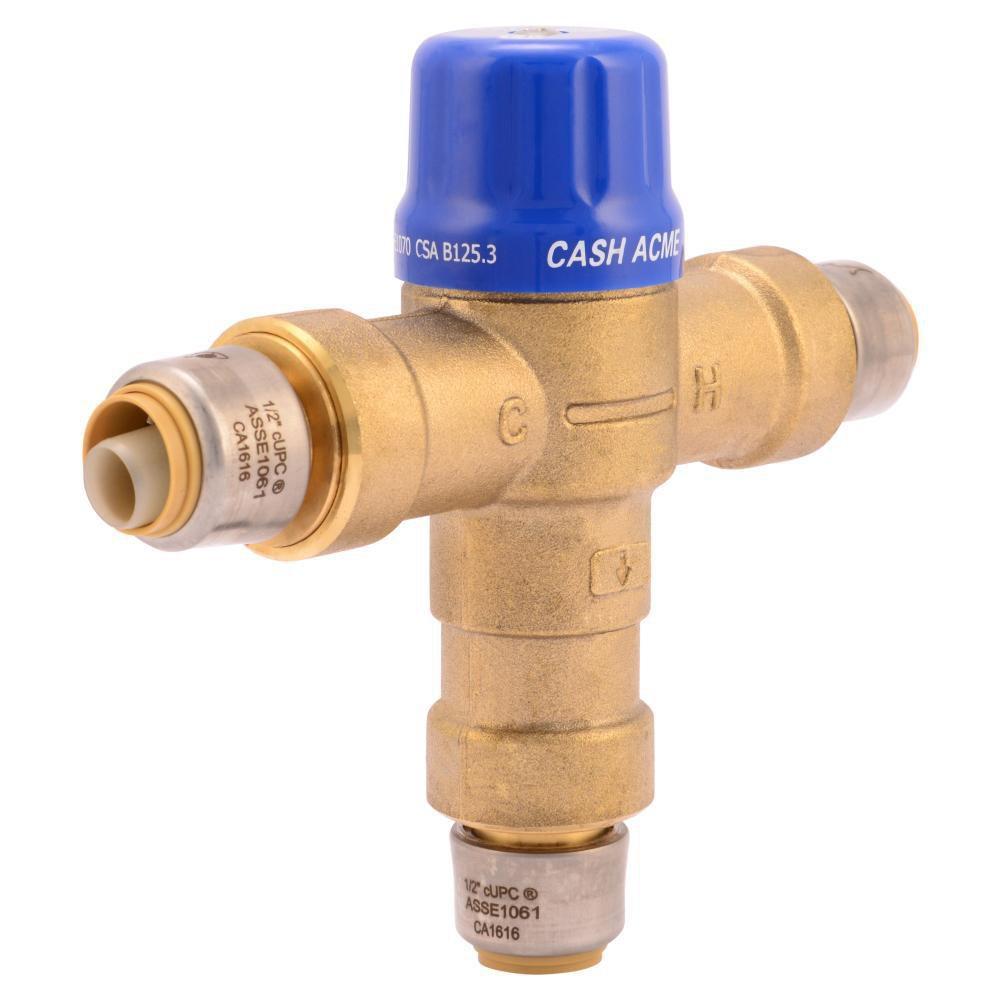

SharkBite 24548 1/2 in. Thermostat Mixing Valve Power Each Replacement MPN

Product Description

The SharkBite 24548 is a thermostatic mixing valve designed for effective water temperature control. It features a 1/2 inch inlet and outlet. This valve is suitable for plumbing applications, including point-of-use and distribution at sources like water heaters. The factory setting maintains water temperature at 120 degrees Fahrenheit. Users can adjust settings between 85 and 130 degrees Fahrenheit to prevent scalding.

• Compatible with PEX and PE-RT pipe.
• Triple listed to ASSE 1017, ASSE 1069, and ASSE 1070.
• No special tools required for installation.

Product Highlights

Efficient for commercial and domestic hot water systems, ensuring safe water output.

Product Information

Standard Information

• Brand: SharkBite
• MPN: 24548

Technical Specifications

• Inlet Connection: 1/2 in
• Outlet Connection: 1/2 in
• Flow Rate: 1 to 20 gpm
• Pressure Rating: 230 psi
• Temperature Rating: 85 to 130 degrees Fahrenheit
• Material: Bronze
• Dimensions: 5.94 in OAL x 5.36 in OAH
• Warranty: 5 Years
