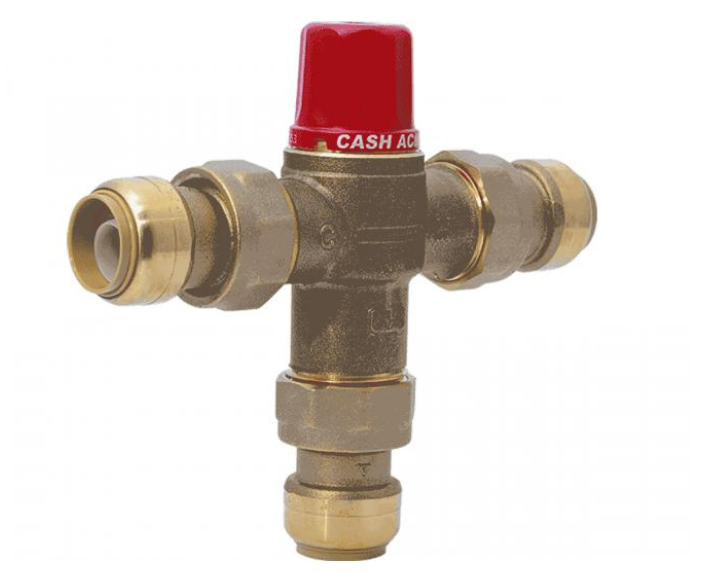

SharkBite 24518 Thermostatic Mixing Valve 3/4 In Size Replace MPN

Product Description

The SharkBite 24518 is a thermostatic mixing valve designed for plumbing applications. It regulates the mixing of hot and cold water to deliver tempered water at a controlled temperature of 120 degrees Fahrenheit (49 degrees Celsius). The product features a push-to-connect design, ensuring quick and easy installation without the need for special tools.

• Mixes hot and cold water effectively.
• Outlet temperature range is from 85 degrees Fahrenheit (29 degrees Celsius) to 176 degrees Fahrenheit (80 degrees Celsius).
• Compatible with PEX, copper, CPVC, PE-RT, and SDR-9 HDPE pipe.

Product Highlights

This mixing valve is ideal for heating system applications and works well in tight spaces.

Product Information

Standard Information

• Product Type: Thermostatic Mixing Valve
• Brand: SharkBite

Technical Specifications

• Size: 3/4 inches
• Minimum Flow Rate: 1 gallon per minute
• Unit Length: 6.1875 inches
• Unit Width: 1.390625 inches
• Unit Height: 5.65625 inches
• Weight: 2.16 lbs
