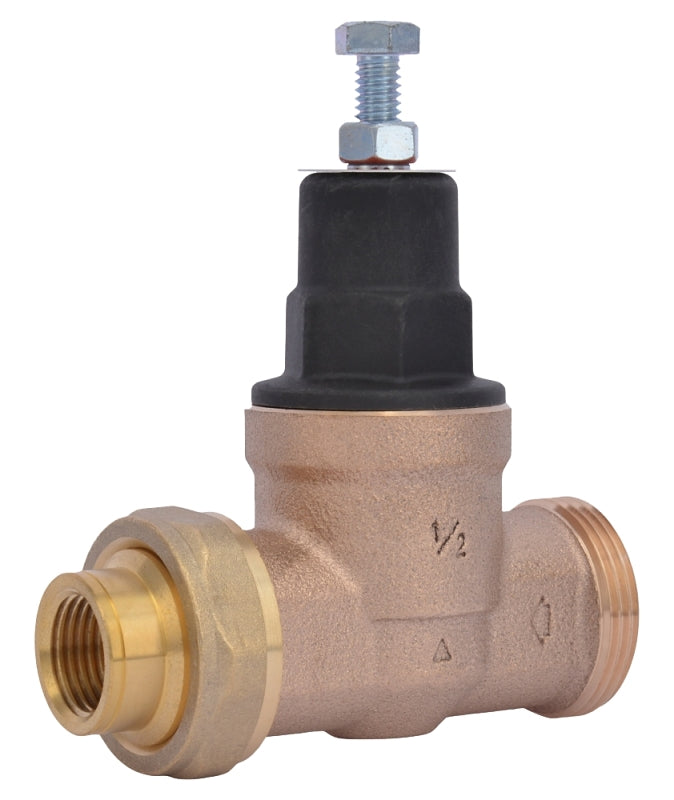

Sharkbite 23882-0045 EB45 Series Pressure Regulating Valve, 1/2 in Single Union x NPT

Product Description

The Sharkbite 23882-0045 EB-45 Series is a lead-free one 1/2 cartridge based pressure reducing and regulating valve with a bronze body. It features end connections threaded for both FIP and union in 1/2 in through 2 in sizes. The outlet pressure can be adjusted from 10 to 70 psi without changing the spring. This regulator is suited for either cold or hot (to 180 deg F) water service.

• Lead-free
• Cartridge based pressure reducing and regulating valve
• Bronze body

Product Highlights

This pressure regulating valve is designed for use where supply line pressure does not exceed 300 psi (400 psi 1/2 in, 3/4 in and 1 in) and is supplied with a standard delivery setting of 45 psi.

Product Information

Standard Information

• Brand: Sharkbite
• Manufacturer Part Number: 23882-0045
• Country of Origin: United States

Technical Specifications

• Body Material: Bronze
• Connection Size: 1/2 in
• Connection Type: Single Union x NPT
• Media: Water
• Operating Pressure: 400 psi
• Softgoods Material: EPDM/Polyphenylene
• Temperature Rating: 33 to 180 deg F
• Trim Material: Iron/Steel/Stainless Steel
• ANSI Approved: Yes
• Indoor / Outdoor: Indoor/Outdoor
• MFG Part # (OEM): 23882-0045
• Material: DZR Lead Free Bronze Body, EPDM Seat Disc, Stainless Steel Piston, EP O-ring
• Package Contents: 1/2 In. 400 Psi EB45 Series Stainless Steel Pressure Regulator Valve
• Product Condition: New
• Restrictions: CA Prop 65
• UPC: 697285238824
• Maximum Pressure: 70 psi
• Each Weight: 1.400 LB
• End 1 Size: 1/2"
• Hazardous Material: No
• Velocity: X
• Product Type: Pressure Regulator Valve
• Nomenclature: 23882-0045 1/2 REGULATOR
• Application: For commercial and domestic water applications
• Manufacturer: RELIANCE WORLDWIDE CORPORATION
• Brand: SharkBite
• Model: PVA08PSUTH-60
• Item Width: 5.25
• Item Height: 5.70
• Item Length: 2.25
• Item Weight: 1.4
• California Prop 65 Warning: This product can expose you to chemicals including
