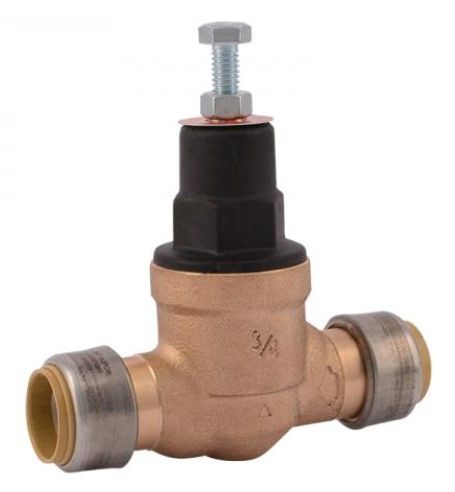

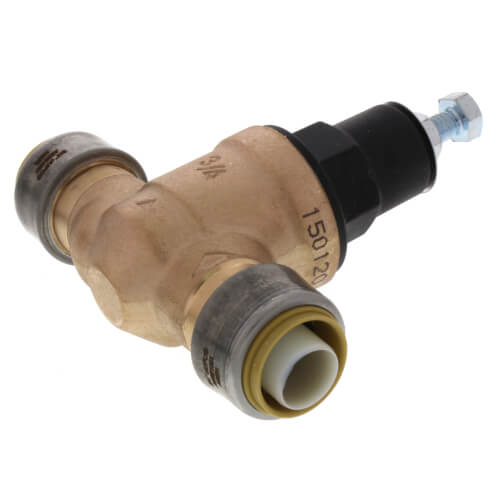

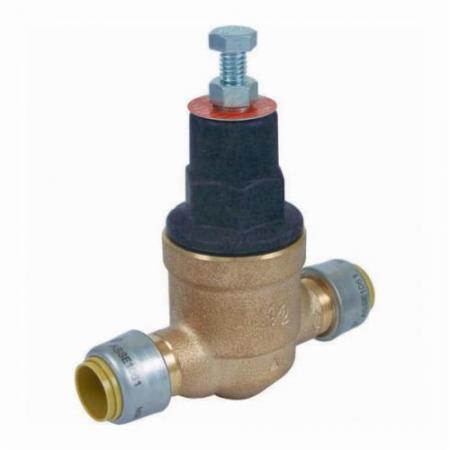

Product DescriptionThe SharkBite 23808-0045 is a 3/4 inch EB45-DSB Direct SharkBite pressure reducing valve. It features a bronze body and a modular cartridge design, ensuring a quick and easy service and repair process.
- Instant push-fit connections
- Rugged bronze body
- Compact design
Product Highlights
This SharkBite EB45-DSB valve is suitable for commercial and residential water applications. It is lead-free and features a bypass mechanism integral with the cartridge for longer life and reliable performance. The valve is factory set at 45 psi but can be adjusted between 10 and 70 psi. It is capable of withstanding pressures up to 200 psi and temperatures up to 180°F.
Product Information
Standard Information
-
Body Material: Bronze
-
Manufacturer: SharkBite
-
Nominal Size: 3/4 inch
Technical Specifications
-

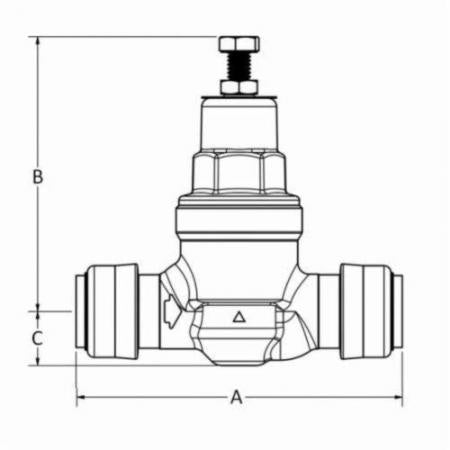

Inlet to Outlet Length: 4.48 inches
-
Top to Inlet Center: 4.37 inches
-
Pressure Rating: 200 psi
-
Temperature Rating: 180°F
-
Application: Water
-
Connection Type: Push to Connect
-
Pressure Adjustment Range: 10 to 70 psi
-
Compliance: ASSE, NSF, IAPMO
