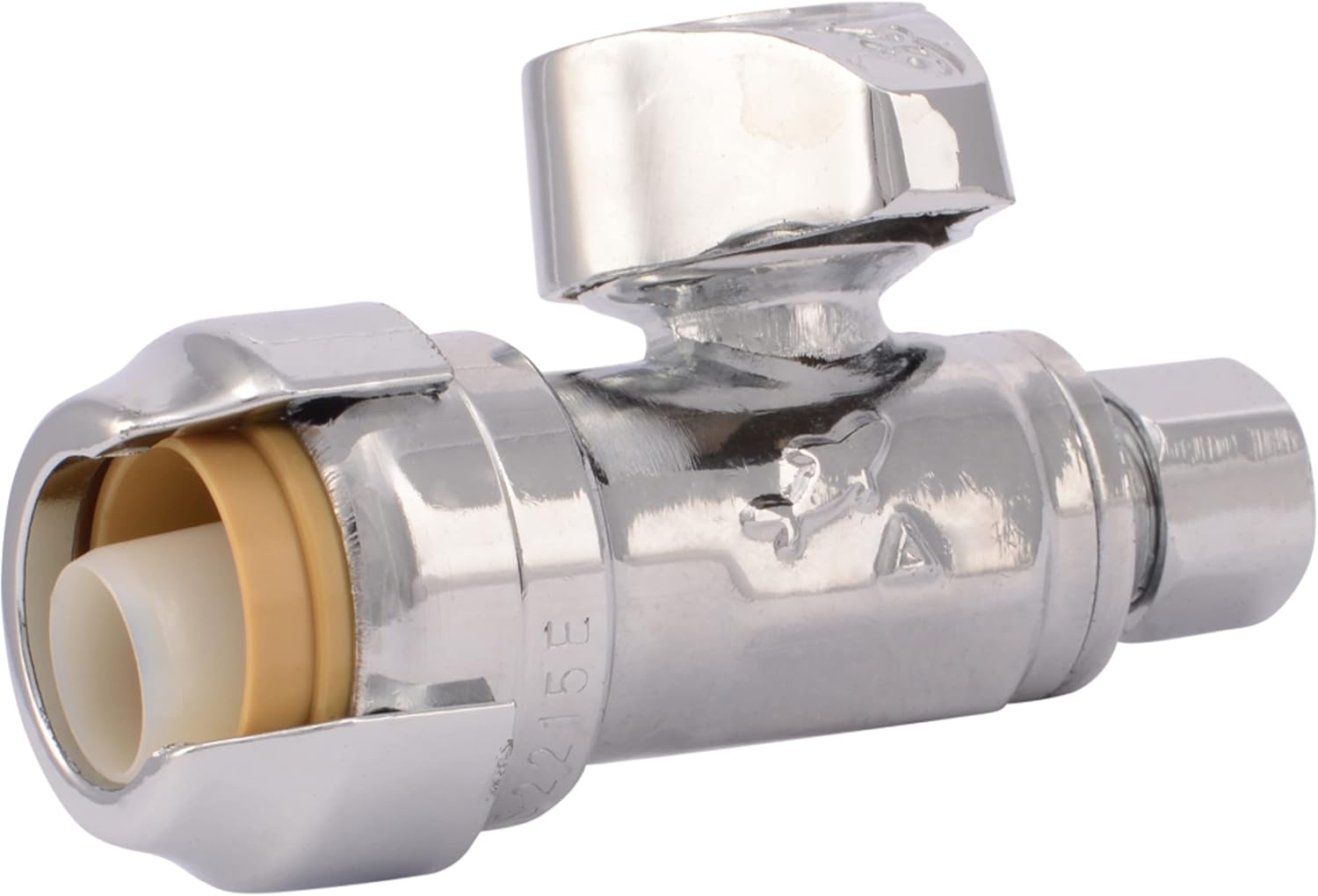

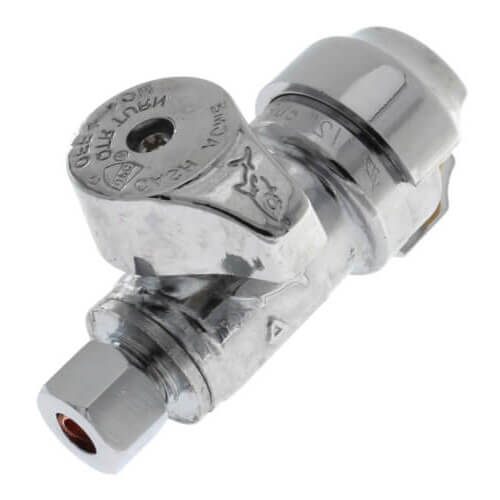

Sharkbite 23337-0000LF Push-to-Connect Straight Stop Valve (1/2 x 1/4 in)

Product Description

The SharkBite 23337-0000LF is a push-to-connect straight stop valve that provides quarter-turn shutoff for fixtures. It has a brass body with a copper exterior finish and push-to-connect connections for fast, tool-free installation on 1/2 in fittings to 1/4 in (3/8 in OD) lines. The valve is compatible with PEX, copper, CPVC, PE-RT, and HDPE tubing and is NSF certified.

• Push-to-connect installation for quick, tool-free connections on 1/2 in to 1/4 in (3/8 in OD) lines
• Quarter-turn operation for shutoff control
• Compatible with PEX, copper, CPVC, PE-RT, and HDPE tubing; brass body with copper exterior

Product Highlights

Brass body with copper exterior; push-to-connect 1/2 in to 1/4 in (3/8 in OD); NSF certified

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: 23337-0000LF

Technical Specifications

• Brand: SharkBite
• MPN: 23337-0000LF
• Model Number: 23337-0000LF
• Product Type: Straight stop valve
• Size: 1/2 in x 1/4 in
• Connections: 1/2 in push-to-connect x 1/4 in (3/8 in OD) push-to-connect
• Operation: Quarter-turn
• Material: Brass
• Exterior Finish: Copper
• Body Material: Brass
• Internal Seal Material: EPDM
• Compatible Tubing: PEX, Copper, CPVC, PE-RT, HDPE
• Maximum Pressure: 200 psi
• Maximum Temperature: 200 F
• Certification: NSF
• Lead Free: Yes
• Insertion Depth: 15/16 in
• Product Dimensions: 2.25 x 1.35 x 4.5 inches
