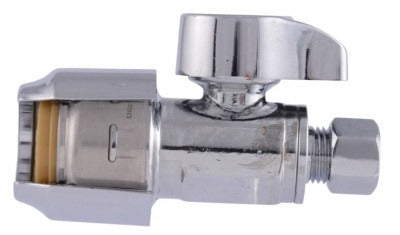

Sharkbite 23337-0000LF 1/2x1/4 Quarter Turn Straight Stop Valve

Product Description

The SHARKBITE CASH ACME 23337-0000LF is a quarter-turn straight stop valve designed to control water flow to household plumbing fixtures. It features a 1/2-inch push-fit inlet that accepts copper, PEX, or CPVC pipe without soldering or special tools, and a 1/4-inch compression outlet for connection to fixture supply lines. The quarter-turn ball valve mechanism provides fast, reliable shutoff. This valve is installed by licensed plumbers and experienced service technicians in residential supply line applications.

This stop valve is suited for residential plumbing installations where an inline shutoff is needed at the point of connection to a fixture supply line. Typical applications include toilet, faucet, and under-sink supply connections. The push-fit inlet is compatible with copper, PEX, and CPVC supply pipe. The push-fit outlet can also be used with grey polybutylene-style tubing to connect to the fixture. Package quantity is 6 units per package, making it practical for multi-fixture jobs or service inventory.

Key Features

• 1/2-inch push-fit inlet accepts copper, PEX, or CPVC pipe without soldering
• 1/4-inch compression outlet connects to fixture supply lines
• Quarter-turn ball valve design for fast, positive shutoff
• Push-fit outlet compatible with grey polybutylene-style tubing
• Sold in a package quantity of 6 units
• Lead-free (LF) construction for compliance with potable water regulations

Compatibility

Designed as an OEM-style straight stop valve for residential plumbing fixture supply connections using copper, PEX, or CPVC inlet pipe with a 1/4-inch compression outlet fixture connection.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and IPC requirements. Shut off the main water supply and relieve line pressure before removing any existing valve or fitting. Ensure the pipe end is cut cleanly and deburred before inserting into the push-fit inlet to achieve a proper seal. Do not overtighten the compression outlet fitting beyond hand-snug plus a quarter turn.
