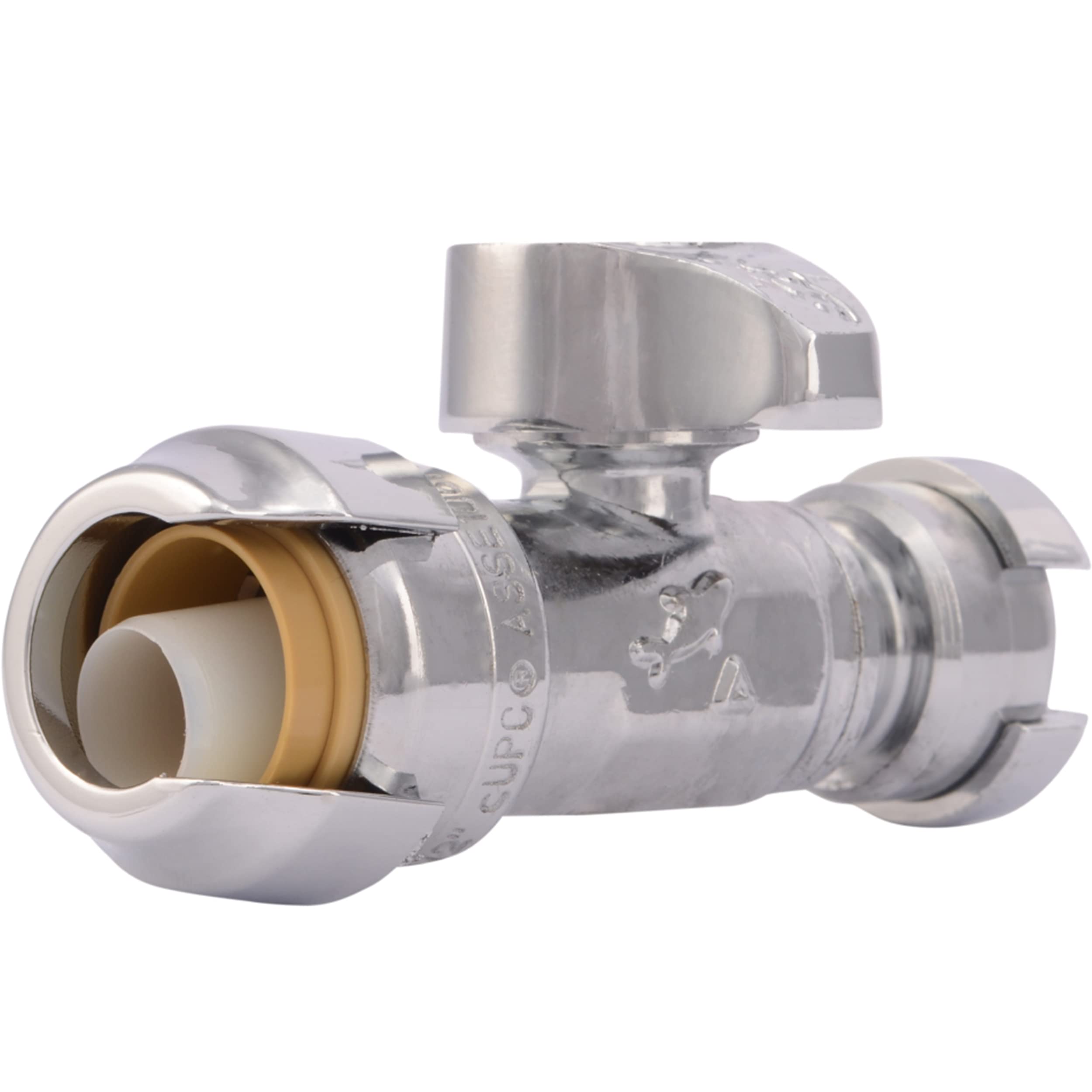

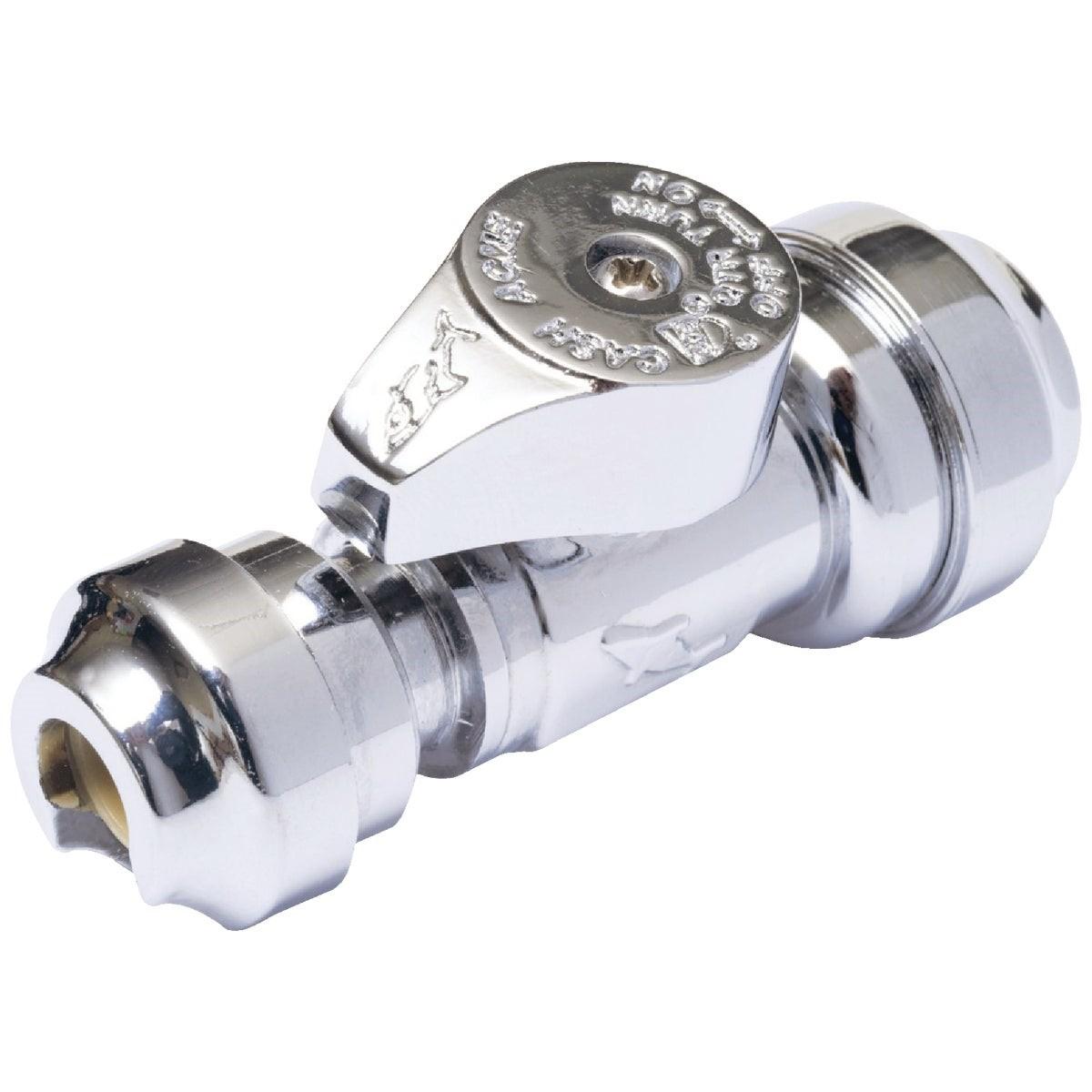

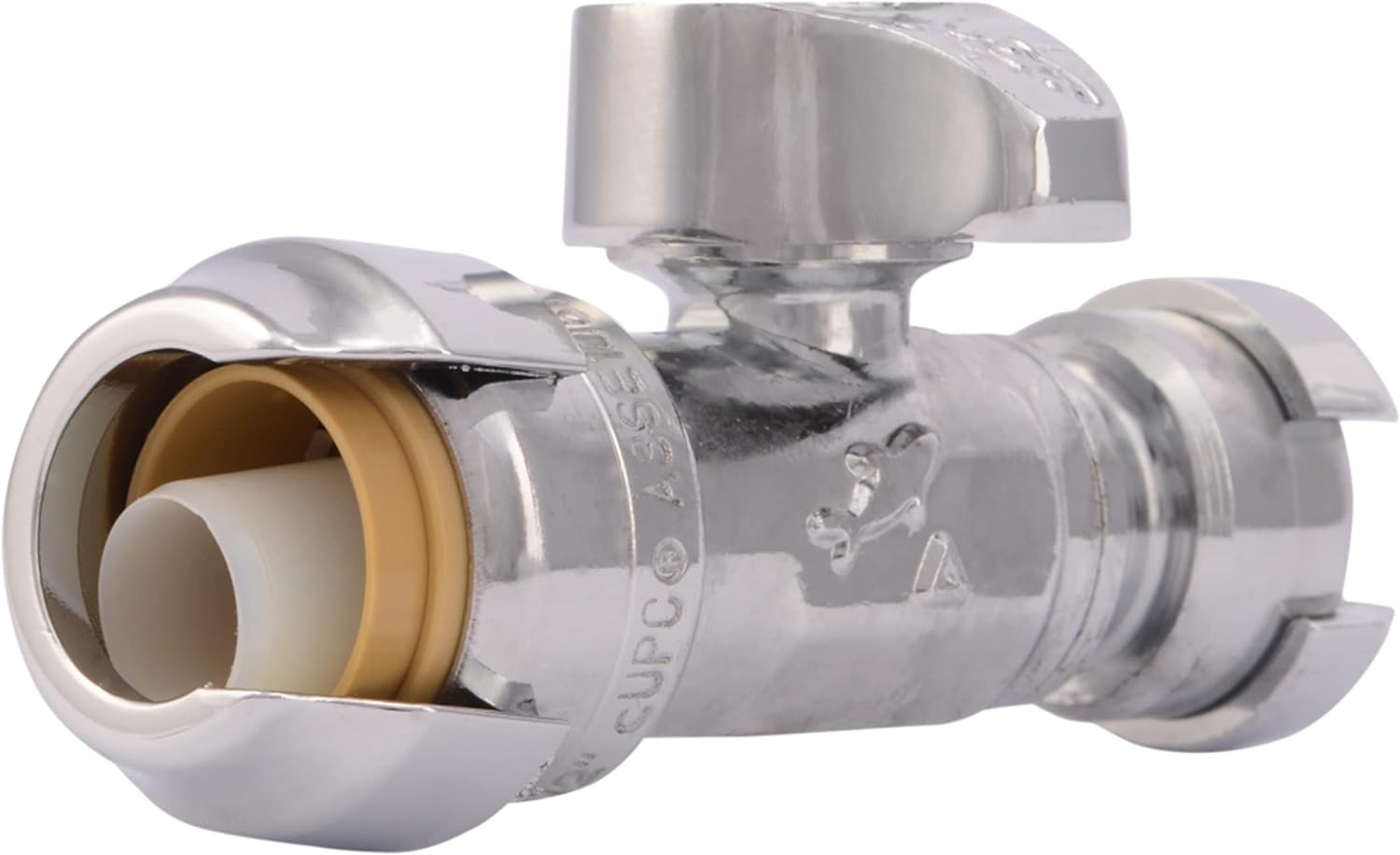

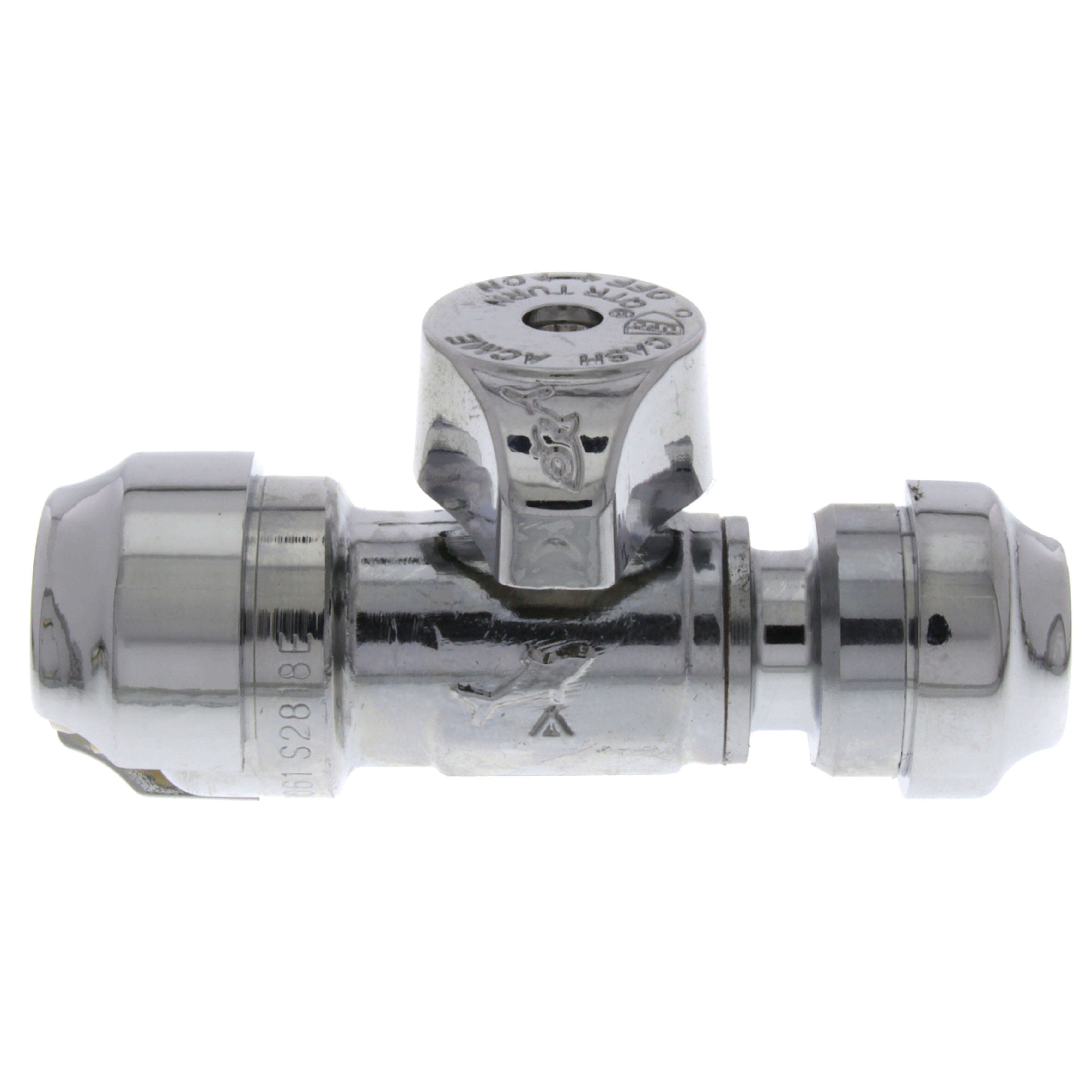

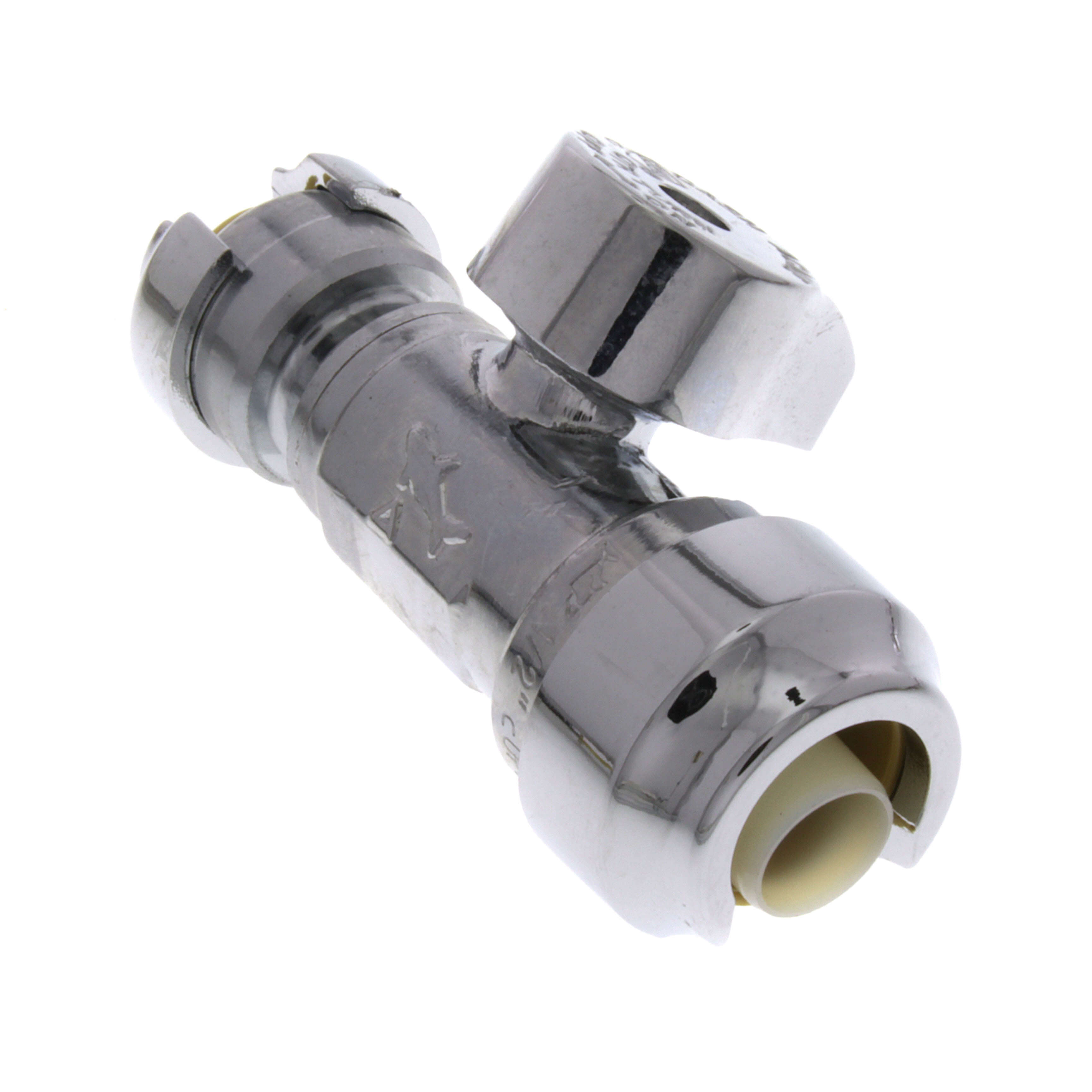

Sharkbite 23049-0000LF 1/2 In. x 1/4 In. (3/8 In. OD) Brass Straight Stop Valve

Product Description

The SHARKBITE 23049-0000LF is a 1/2 In. x 1/4 In. (3/8 In. OD) brass straight stop valve. This valve is designed to control the flow of water to plumbing fixtures. It is compatible with PEX, copper, CPVC, or PE-RT stubouts. The valve features a push-to-connect design for easy installation without soldering, clamps, or special tools.

• Works on wet lines, rotatable after installation, and removable
• Push-to-connect fittings are ideal for installation in tight spaces
• Rated to 160 degrees Fahrenheit and 125 PSI

Product Highlights

This SharkBite straight stop valve offers a fast and easy way to connect to various pipe types, providing reliable water flow control for plumbing fixtures.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: 23049-0000LF
• Country of Origin: USA

Technical Specifications

• Brand: SharkBite
• MPN: 23049-0000LF
• UOM: Each
• Category: Stop valve
• Temperature Range: 160 deg F
• Finish: Stainless steel
• Material: Brass
• Style: Straight
• Pattern: Valve
• Certification: NSF, ASSE
• Number of Pieces: 1
• Measurement System: Inch
• Batteries Included?: No
• Batteries Required?: No
• Included Components: Straight Stop
• Size: 1/2" x 1/4" (3/8" OD)
• Model / MPN: 23049-0000LF
• Number of Items: 1.0
• Product Type: VALVE
• Product Group: Home Improvement
• Inlet Size: 1/2"
• Valve Type: Straight
• Application: Plumbing
• Outlet Size: 1/4"
• Body Pattern: Straight
• Standards Met: NSF, ASTM F1960, ASTM F877
• Insertion Depth: 13/16", 15/16"
• Max Pressure (PSI): 200
• Tubing Compatibility: OD Controlled Copper, CPVC, PEX
• Temperature Range (F): 40°F to 180°F
• Fitting System Compatibility: Push Fit
• Body Material: Brass
• End Style: Push Connect
• Media: Water
• Nominal Size: 1/2 x 1/4 In
• Pressure Rating: 200 psi
• Softgoods Material: EPDM
• Temperature Rating: 200 deg F
• UPC: 697285606043
