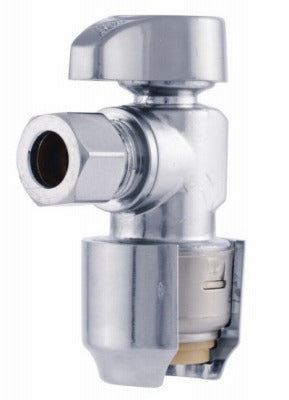

Sharkbite 23036-0000LF Lead Free Angle Stop 1/2x3/8 Compression

Product Description

The SHARKBITE 23036-0000LF is a lead-free angle stop valve with a 1/2-inch push-fit inlet and a 3/8-inch compression outlet, designed for shutoff service on potable and hydronic water distribution systems. Constructed from DZR brass, this fitting is rated to 200 psi and 200 degrees F. The push-fit end accepts copper tubing (CTS), CPVC, and PEX, with an integral tube liner included to support PEX connections. Licensed plumbers and pipefitters install this fitting in residential and light commercial applications wherever a quarter-turn shutoff is required at fixture supply lines.

This angle stop is suited for under-sink, toilet, and appliance shutoff installations. The push-fit inlet eliminates soldering on the supply stub-out, reducing labor time at the rough-in or retrofit stage. It is certified for underground applications as a manufactured joint, removing the requirement for an access panel in those installations. The package contains 12 units, making it practical for multi-fixture jobs or contractor stocking.

Key Features

• Push-fit inlet connects to copper CTS, CPVC, and PEX without solder or crimp tools
• Integral tube liner included for PEX connections
• DZR brass construction resists dezincification in aggressive water conditions
• Rated to 200 psi and 200 degrees F
• Certified for underground use as a manufactured joint — no access panel required
• Lead-free compliant per Federal Law 111-380 (Reduction of Lead in Drinking Water Act)

Compatibility

Compatible with copper tubing (CTS), CPVC, and PEX pipe on the 1/2-inch push-fit inlet. The 3/8-inch compression outlet connects to standard fixture supply lines. Certified for use on potable and hydronic water distribution systems. Listed with IAPMO and certified to ASSE 1061 and NSF 61 standards. Meets UPC, IPC, and CUPC requirements.

Installation Notes

Installation must be performed by a licensed plumber in accordance with the applicable IPC or UPC code for the jurisdiction. Shut off the water supply and depressurize the line before installation or removal. Ensure pipe ends are cut square, deburred, and cleaned to the manufacturer depth-mark before engaging the push-fit connection. Do not exceed the rated pressure or temperature limits of 200 psi and 200 degrees F.
