Sharkbite 22223-0000 Ball Valve 1 feet'

Product Description

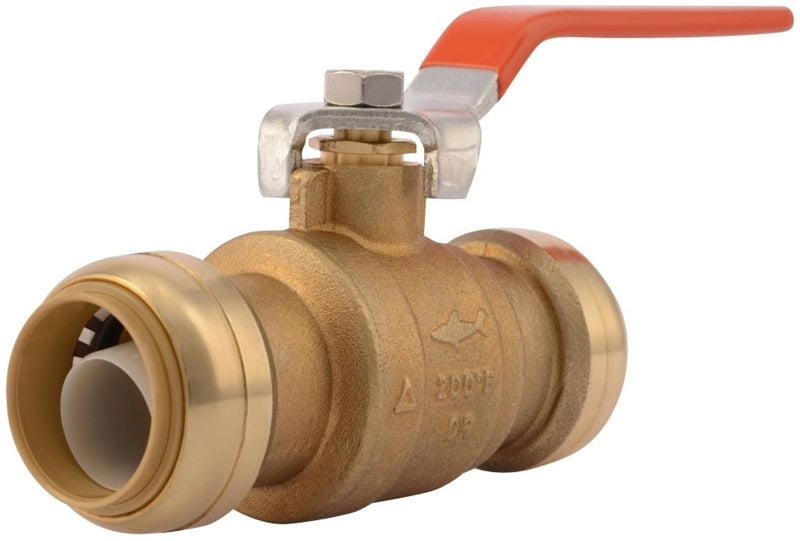

The SHARKBITE 22223-0000 is a forged brass ball valve that connects combinations of copper, CTS CPVC and PEX tubing. This fitting is certified for underground applications and for use as a manufactured joint without an access panel. It features push-fit connections that allow you to join to copper, PEX, CPVC or PE-RT pipe without soldering, clamps, glue or unions.

• Dezincification resistant brass body provides durability
• Fits copper, CTS CPVC and PEX tubing (not included)
• SharkBite PTC connections for fast, easy installation

Product Highlights

Certified for underground applications. Push-fit connections provide easy installation. Meets UPC, IPC and cUPC requirements.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: 22223-0000

Technical Specifications

• Material: Brass
• Size: 1 in
• Type: Ball Valve
• Maximum working pressure: 200 psi
• Certified to: 200 degrees Fahrenheit (93 degrees Celsius)
• Ball Material: Brass
• Body Material: Brass
• Connection Type: Push-Fit
• Handle Material: Steel
• Lead-Free/Contains Lead: Contains Lead
• Nominal Size: 1 in
• Packing Material: PTFE
• Pressure Rating: 200 psi
• Seal Material: EPDM
• Stem Material: Brass
• Temperature Rating: 200 deg F
• Manufacturer’s Part #: 22223-0000
