Sharkbite 18821-0150 Nclx-5L Temperature and Pressure Relief Valve 3/4 Inch 15

Product Description

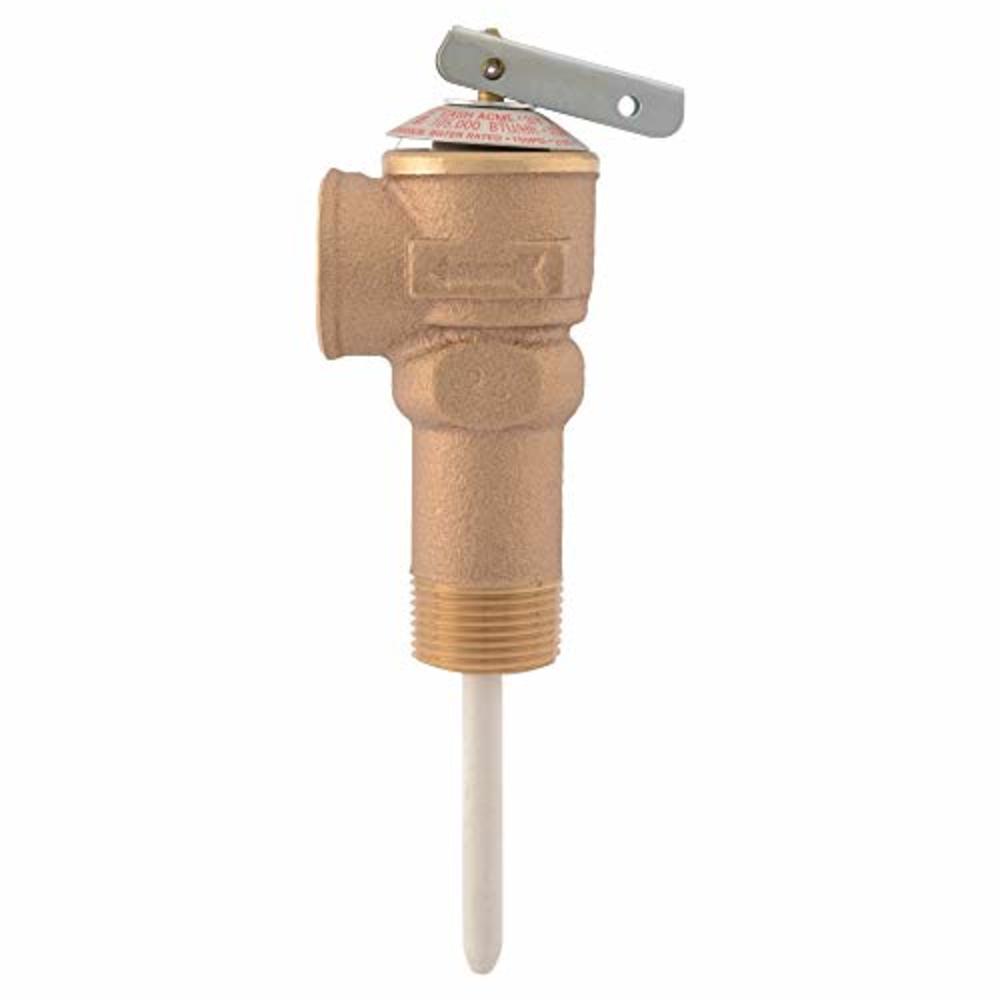

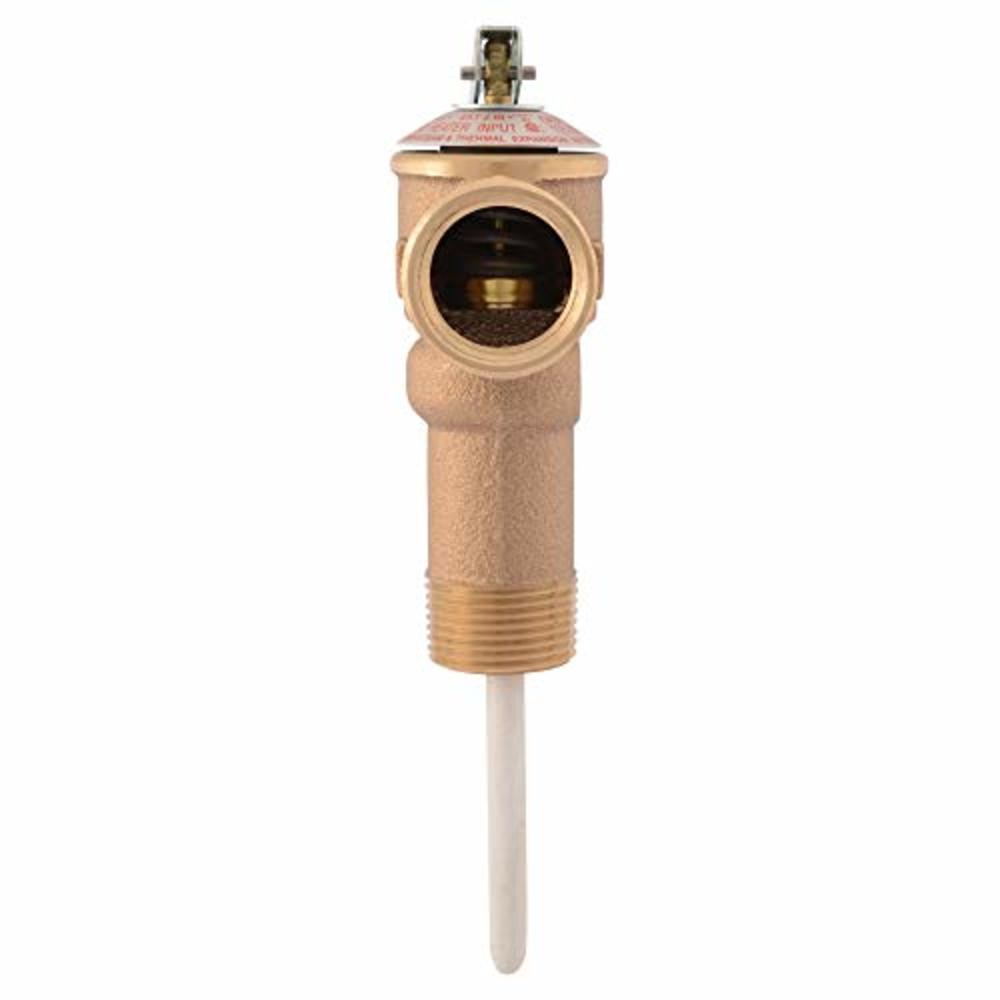

The SHARKBITE 18821-0150 Nclx combination temperature and pressure relief valve is designed for the protection of water heaters and storage tanks. It features a cast bronze body with brass and stainless steel internal parts, a silicone seat disc, and a stainless steel pressure spring. The valve has standard factory settings of 150 psi for pressure relief and 210 degrees F for temperature relief.

• Designed for the protection of water heaters and storage tanks.
• Features a cast bronze body, brass, and stainless steel internal parts, silicone seat disc, and stainless steel pressure spring.
• Standard factory settings of 150 psi for pressure relief and 210 degrees F for temperature relief.

Product Highlights

Combination temperature and pressure relief valve with bronze body and stainless steel internals, designed to protect water heaters and storage tanks.

Product Information

Standard Information

• Brand: SHARKBITE
• Manufacturer Part Number: 18821-0150

Technical Specifications

• Valve Size: 3/4 Inch
• Relief Pressure: 150 psi
• Temperature Relief: 210 Degrees F
• Body Material: Cast Bronze
• Internal Parts: Brass and Stainless Steel
• Seat Disc Material: Silicone
• Pressure Spring Material: Stainless Steel
• Compliance: NSF 319, ASSE Standard 1003, CSA Standard B357
