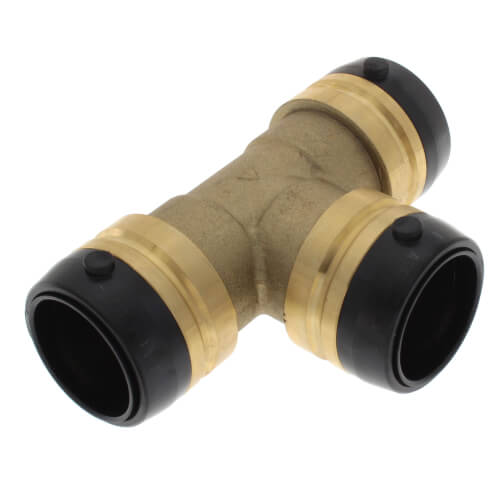

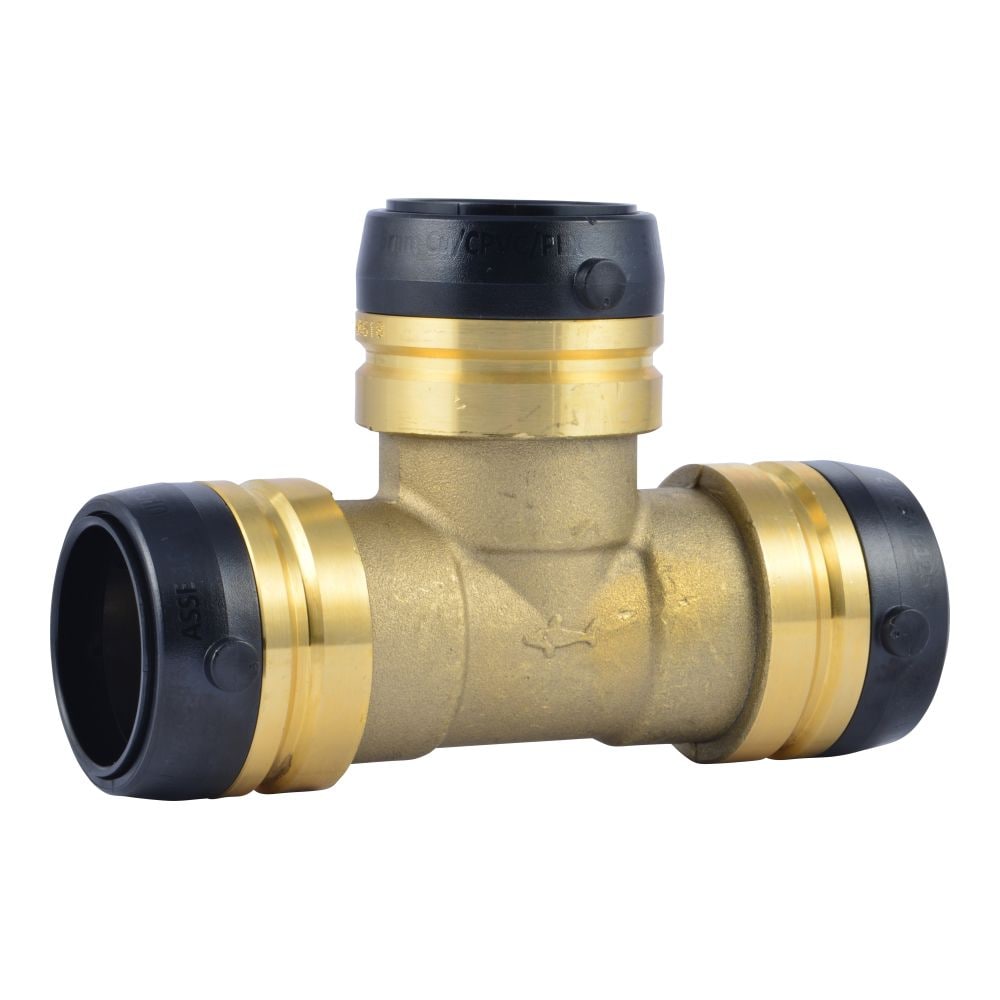

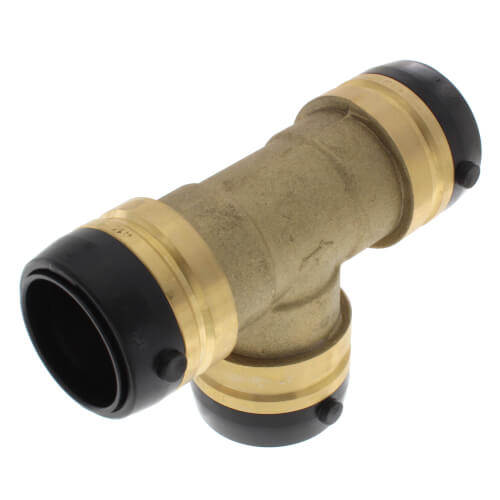

Shark UXL0835 1-1/4 inches Sharkbite Tee (Lead Free)

Product Description

The SHARK UXL0835 Large Diameter tee fitting joins Copper, PEX, CPVC, PE-RT or SRD9 HDPE pipe without tools, soldering, or glue. These fittings easily rotate once installed. Designed for potable water and radiant heating applications, they can be used underground or behind walls without access panels. Always use PEX Stiffeners when using PEX pipe with large diameter fittings.

• Quick Connect & Disconnect
• SAFE-Recessed Release Collar
• Easy Installation
• Lead Free DZR Brass Material

Product Highlights

Compatible with copper, CPVC, PEX, PE-RT and HDPE pipes. No tools, soldering, clamps, unions or glue needed.

Product Information

Standard Information

• Brand: SHARK
• Manufacturer Part Number: UXL0835

Technical Specifications

• Size: 1-1/4"
• Lead Free: Yes
• Insertion Depth: 2"
• Material: Brass
• Application: Heating
• Max Pressure (PSI): 200
• Warranty: 25 Year
• Standards Met: NSF
• Fitting System Compatibility: Push Fit
• Tubing Compatibility: OD Controlled Copper, PEX, CPVC
• Max Temp (F): 200°F
• Fitting Size (in.): 1-1/4"
• Connection Method: Push to Connect
• Fitting or Connector Type: Tee
• Assembled Depth (in inches): 2.059
• Assembled Height (in inches): 10.401
• Assembled Width (in inches): 1.021
• Packaged Depth (in inches): 2.06
• Packaged Height (in inches): 10.4
• Packaged Width (in inches): 10.03
• Length (in.): 10.13
• Brand: SharkBite
• End A-to-End B Gender: Female-to-Female
• End A Diameter/Tube OD: 1-1/4”
• Fitting Shape: Tee
• MPN: UXL0835
• End B Diameter/Tube OD: 1-1/4”
• End C (for Tees): Push-to-Connect
• End A-to-End B: Push-to-Connect-to-Push-to-Connect
• End C Diameter/Tube OD (for Tees): 1-1/4”
• UPC: 697285040816
