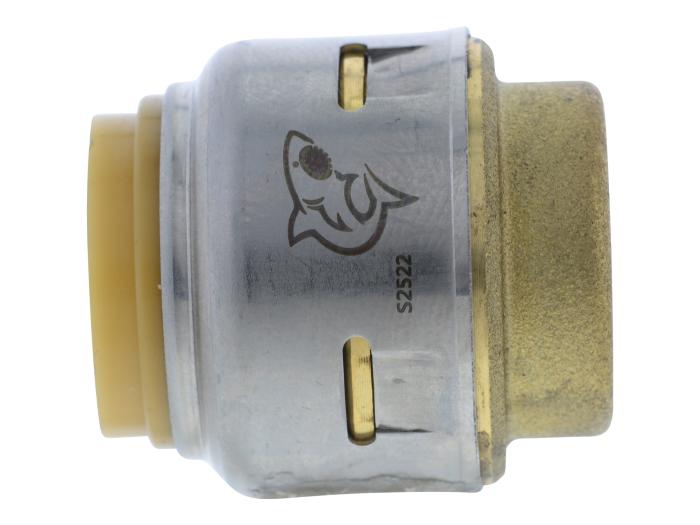

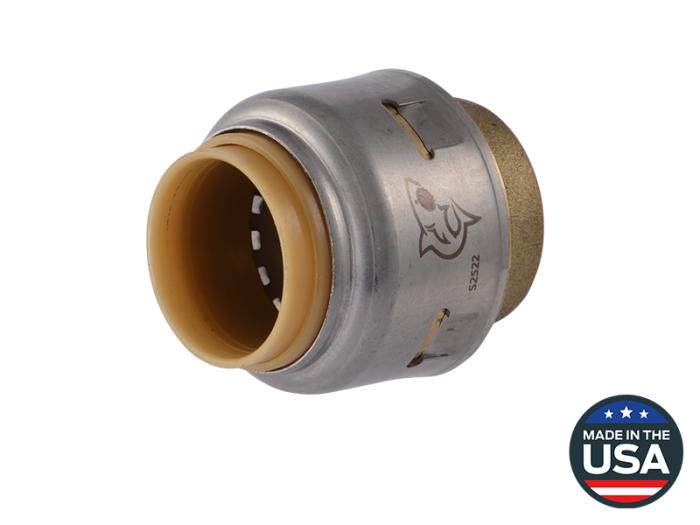

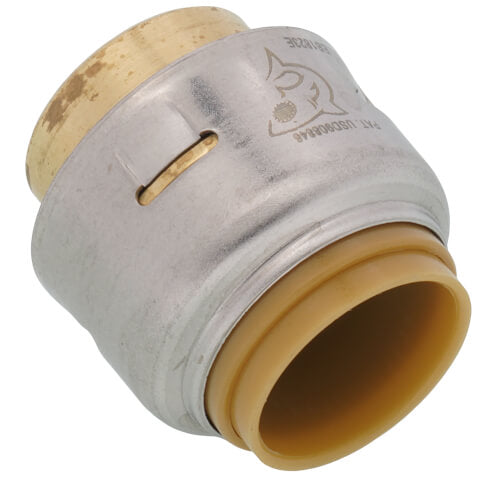

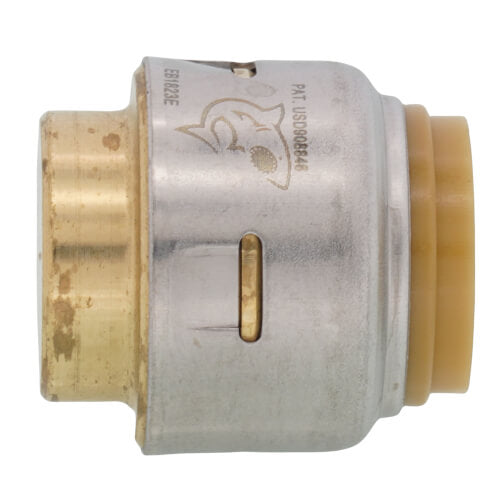

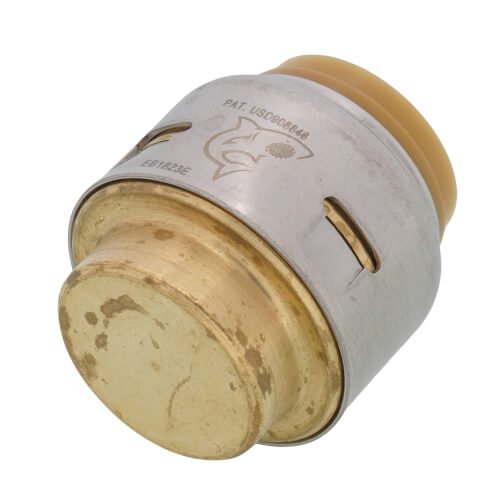

SHARK UR514 Max Push End Cap

Product Description

The SHARK UR514 Max Push End Cap is a reliable fitting that connects to PEX, copper, CPVC, and PE-RT pipes. This end cap features a push-to-connect design that simplifies installation and removal in tight areas. It is made from durable DZR brass and includes a stainless steel retainer. The fitting can be used on wet lines and is ready for pressure testing immediately.

• Connects PEX, copper, CPVC, PE-RT, or HDPE SDR-9 pipe.
• No tools, crimping, soldering, or adhesive needed.
• Easy removal with a disconnect clip or pro disconnect tool.

Product Highlights

The SHARK UR514 Max Push End Cap is suitable for heating applications and can be installed quickly and efficiently.

Product Information

Standard Information

• Brand: SHARK
• MPN: UR514

Technical Specifications

• Pipe Size: 1/2 inches
• Material: DZR Brass
• Lead Free: Yes
• Fitting System Compatibility: Push Fit
• Tubing Compatibility: PEX
• Max Pressure (PSI): 200
• Max Temp (F): 200°F
• Insertion Depth: 15/16 inches
• Common Applications: Behind-the-wall with no access panels, Underground - Wrap required for burial
• Approvals & Listings: ASSE 1061, CSA B125.3, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASTM E84, CAN/ULC S102.2, UL 263, ASTM E119, CAN/ULC S101
• Warranty: 25 Year
