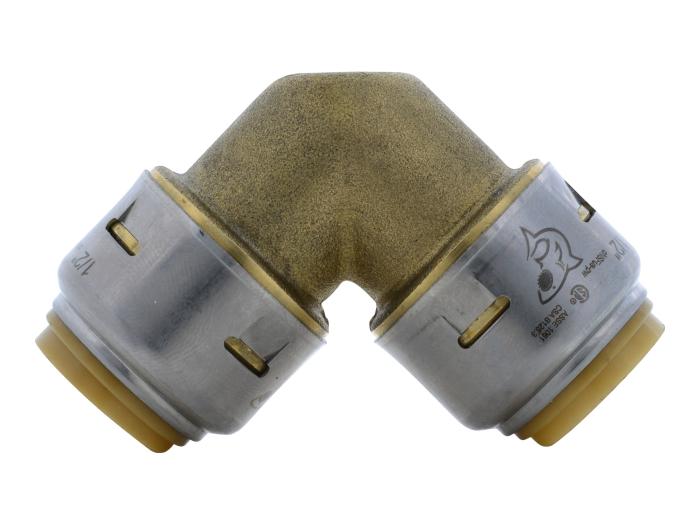

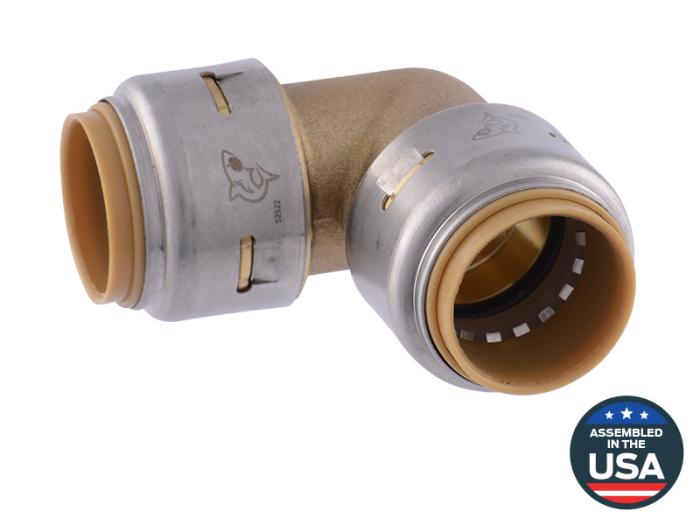

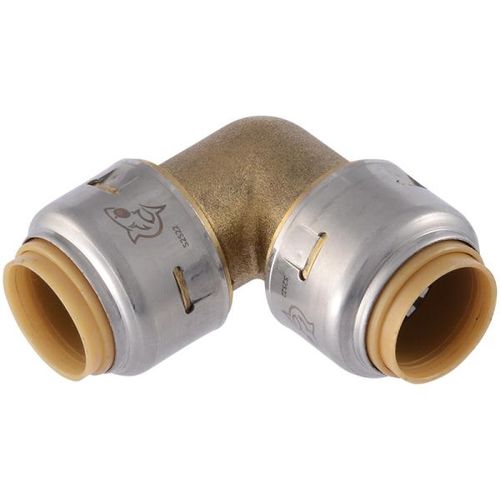

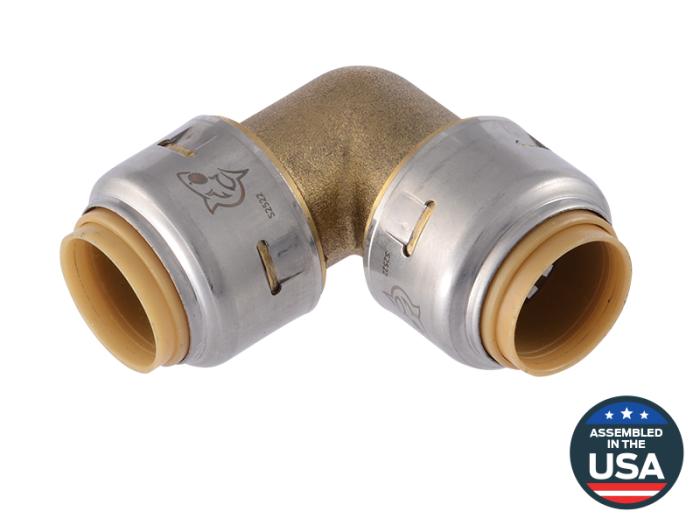

SHARK UR260 1 90-Degree Elbow

Product Description

The SHARK UR260 90-degree elbow features a push-to-connect design ideal for joining potable water pipes. Made from DZR brass, this fitting is suitable for plumbing and heating applications. It connects various types of tubing, including PEX, copper, CPVC, PE-RT, or HDPE SDR-9. The fitting can also be applied to wet lines. A stainless steel grab ring and an EPDM rubber O-ring ensure a reliable seal.

• Push-to-connect design for fast installation.
• Constructed from durable DZR brass.
• Compatible with PEX, copper, CPVC, PE-RT, and HDPE SDR-9 tubing.

Product Highlights

This fitting is built for quick connections and strong performance in plumbing systems.

Product Information

Standard Information

• Material: Brass
• Pipe Size: 1 inch x 1 inch

Technical Specifications

• MPN: UR260
• Fitting System Compatibility: Push Fit
• Maximum Pressure: 400 PSI
• Maximum Water Temperature: 200 Degrees F
• Application: Heating
• Tubing Compatibility: CPVC, OD Controlled Copper, PEX
• Approvals & Listings: ASSE 1061, CSA B125.3, NSF/ANSI 14, NSF/ANSI/CAN 61, NSF/ANSI/CAN 372, ASTM E84, CAN/ULC S102.2, UL 263, ASTM E119, CAN/ULC S101
