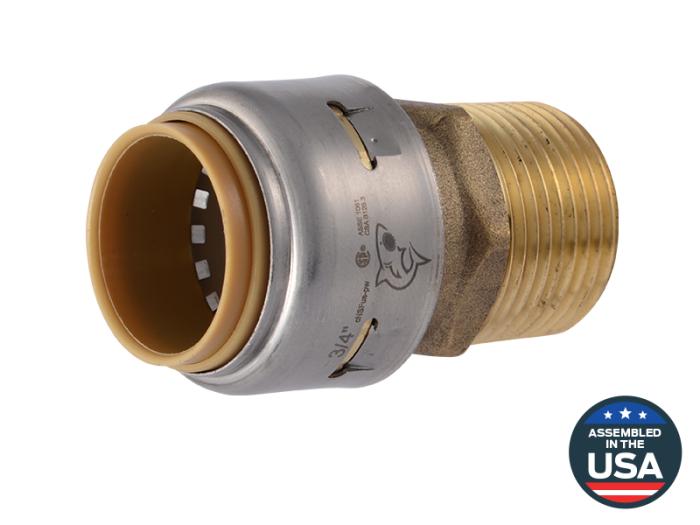

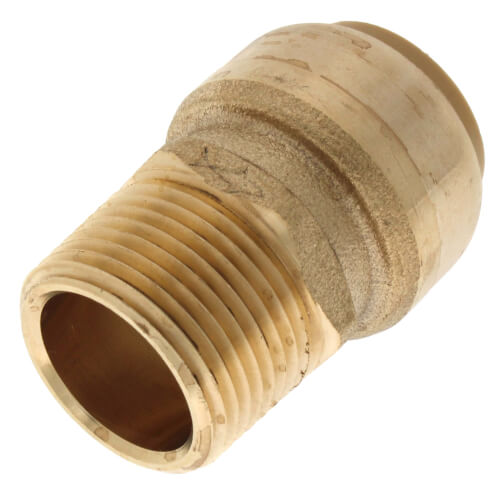

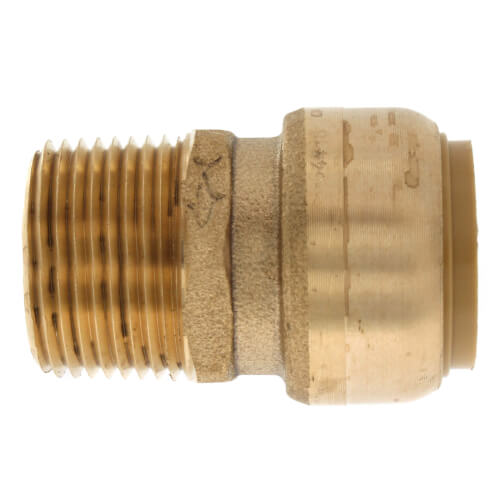

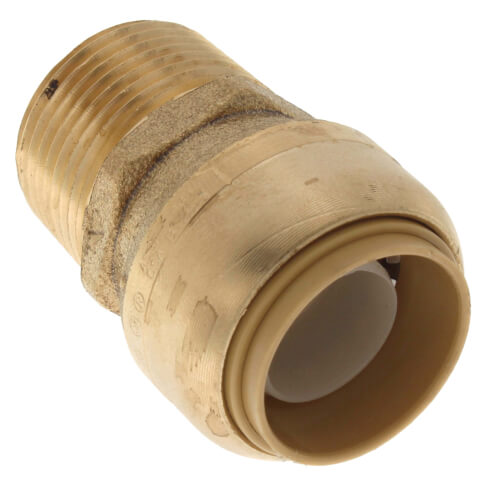

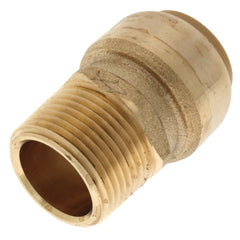

Shark UR134 SharkBite Max 3/4 MNPT Adapter

Product Description

The Shark UR134 SharkBite Max 3/4 MNPT Adapter provides a push-fit connection for transitioning between OD controlled pipe and male NPT threaded connections. This adapter is compatible with copper, CPVC, and PEX piping systems and is made from DZR brass for durability. It features a stainless steel retainer and is certified for both potable and hydronic heating water distribution. The Shark UR134 is rated for underground use and can be installed behind walls without access panels.

• Push-fit connection for easy installation
• Approved for potable water and hydronic heating systems
• Compatible with multiple pipe types: copper, CPVC, and PEX

Product Highlights

This adapter streamlines connections in plumbing systems, making it ideal for a variety of residential and commercial applications.

Product Information

Standard Information

• MPN: UR134
• Size: 3/4

Technical Specifications

• Material: DZR Brass
• Thread Type: Male
• Fitting System Compatibility: Push Fit
• Tubing Compatibility: OD Controlled Copper, CPVC, PEX
• Thread Size: 3/4
• Max Pressure (PSI): 200
• Max Temperature (F): 200°F
• Application: Heating
• Standards Met: NSF
• Lead Free: Yes
• Connection Size: 3/4 x 3/4
• Connection Type: SB x MPT
• Item Dimensions: L 1.3 x W 1.3 x H 2.1 (in.)
• Insertion Depth: 1-1/8
