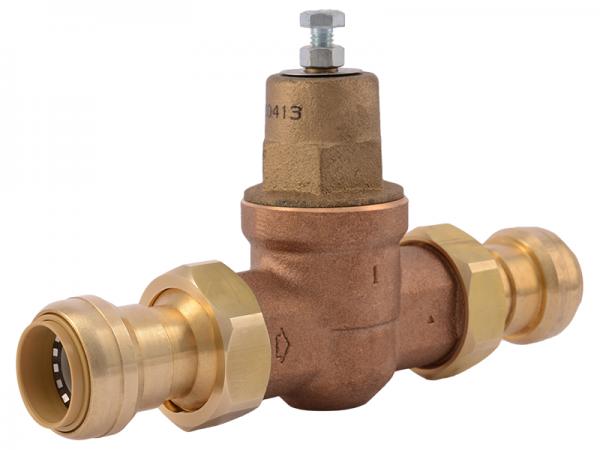

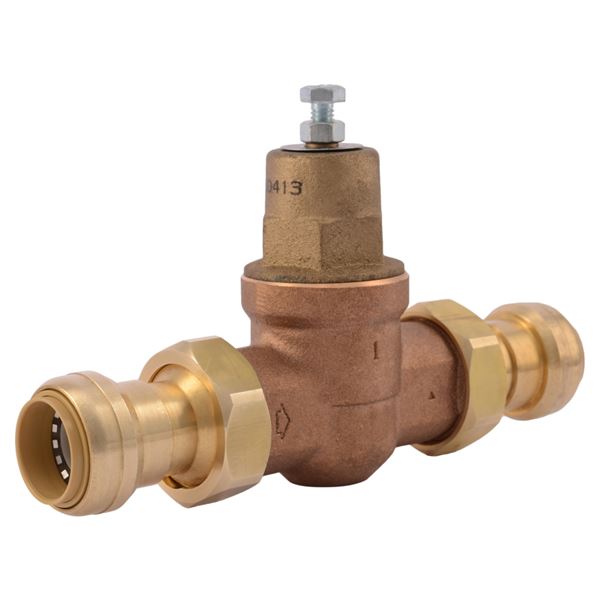

SHARK 23945-0060 EB45 Double Union SharkBite Pressure Regulating Valve 1inch

Product Description

The SHARK 23945-0060 EB45 Double Union SharkBite Pressure Regulating Valve is a key component for maintaining optimal water pressure. This valve is made from lead-free bronze, ensuring safe use in various water applications. It offers union SharkBite connections for quick and efficient installation, making it ideal for both cold and hot water services up to one hundred eighty degrees Fahrenheit.

• Modular cartridge design for easy maintenance
• Push-fit connections eliminate the need for soldering
• Robust construction enhances durability and safety

Product Highlights

This pressure regulating valve allows adjustments from ten to seventy psi, factory set at sixty psi, providing versatility for different plumbing setups.

Product Information

Standard Information

• Type: Pressure Regulator
• Media: Water

Technical Specifications

• Connection Type: Double Union SharkBite
• Size: 1 inch
• Operating Temperature (Min): 33 degrees Fahrenheit
• Operating Temperature (Max): 180 degrees Fahrenheit
• Maximum Operating Pressure: 200 psi
• Overall Length: 8.71 inches
• Overall Height: 5.40 inches
• Body Material of Valve: Lead Free Bronze
• Factory Set: 60 psi
• Outlet Pressure Range: 10-70 psi
• Series: EB45
• Domestic/Import: Domestic
