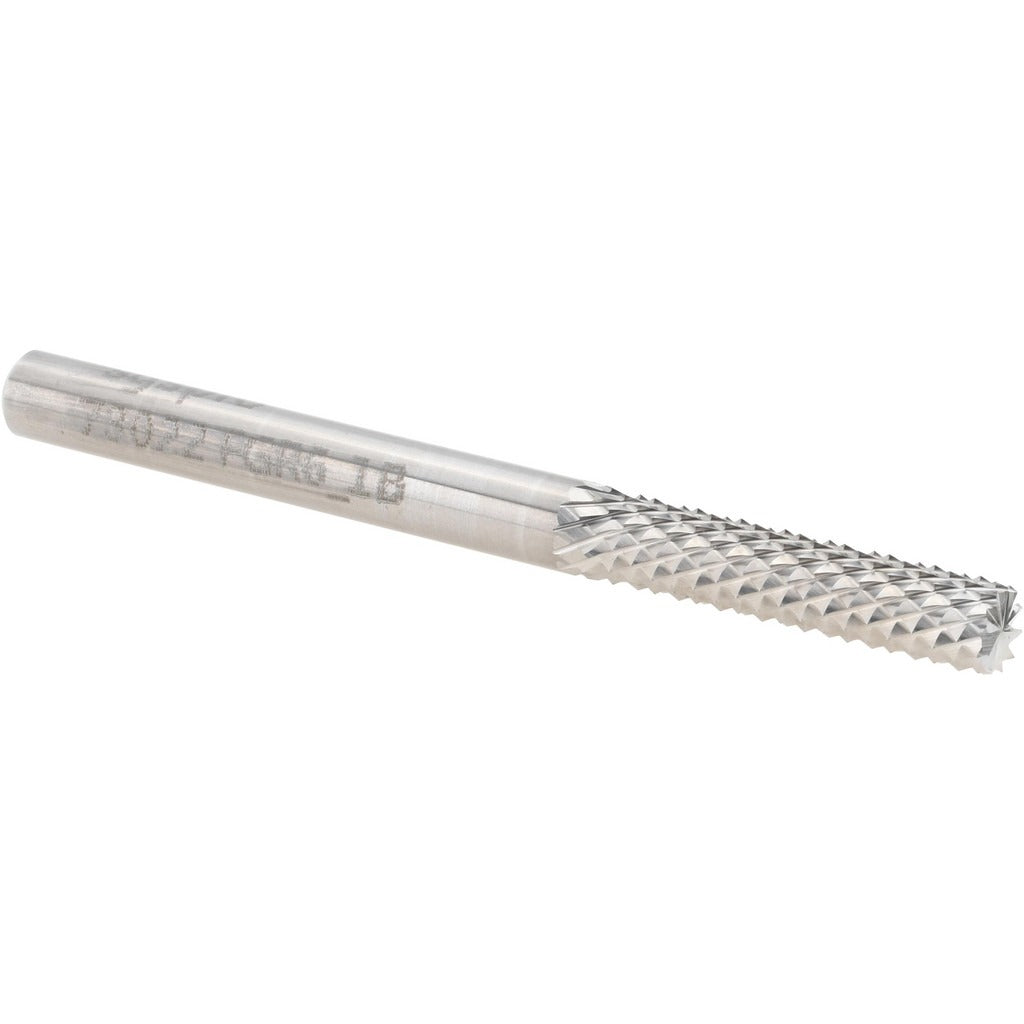

Sgs Pro 73022 Diamond Pattern Router Bit 0.25in 1/4in Shank

Product Description

The SGS PRO 73022 is a diamond pattern router bit designed for use in CNC machines and high-speed rotary applications. It features a 0.25 inch cutter diameter, a 1 inch length of cut, and a 1/4 inch shank diameter, making it a compact, precision-ground burr-style bit suited for detail work, surface texturing, and material removal in tight geometries. The overall length is 3 inches with a 2 inch shank length, providing stable tool engagement in collet-style CNC spindles. At 0.1 pounds, it is lightweight and easy to load. This bit is typically installed by CNC machinists, toolmakers, and fabrication technicians working with routers or die grinders.

The SGS PRO 73022 is intended for use in CNC machine setups where a burr-type router bit is required for contouring, engraving, or surface finishing operations. The diamond pattern geometry supports aggressive chip evacuation and consistent surface contact across a range of materials. It is suited for production and job-shop environments where repeatable, fine-detail cutting passes are required on workpieces that demand a textured or patterned cut profile.

Key Features

• 0.25 inch cutter diameter for fine-detail routing and burr operations
• 1 inch length of cut provides adequate depth engagement for most CNC contouring passes
• 1/4 inch shank diameter fits standard collet toolholders on CNC routers and die grinders
• 3 inch overall length with 2 inch shank for stable, low-runout tool holding
• Diamond pattern burr geometry aids chip clearance and surface finish consistency
• Lightweight at 0.1 pounds for minimal spindle load impact

Compatibility

Designed for use in CNC machines equipped with 1/4 inch collet toolholders; compatible with standard CNC router spindles and rotary die grinder chucks accepting 1/4 inch shank tooling.

Installation Notes

This bit is installed by CNC machinists or tooling technicians. Power down and lock out the spindle before inserting or removing the bit from the collet. Ensure the shank is fully seated and the collet nut is properly torqued per the machine manufacturer specifications before running. Inspect the cutting edges for chipping or wear before each use, as a damaged burr bit can cause workpiece defects or loss of control at operating speeds.
