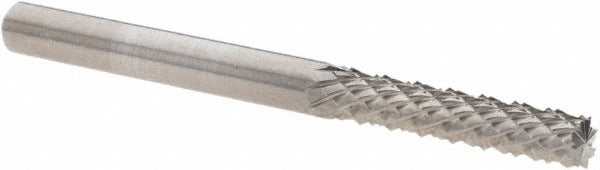

Sgs Pro 73017 Diamond Pattern Router Bit 1/8 Inch Shank Burr

Product Description

The SGS PRO 73017 is a diamond pattern router bit designed for precise material removal in CNC machine applications. With a cutter diameter of 0.125 inches and a shank diameter of 0.125 inches, this bit fits standard 1/8 inch collets. The length of cut measures 0.5 inches, and the overall length is 1.5 inches, making it a compact tool suited for detail work and tight-tolerance routing operations. The bright/uncoated finish leaves the carbide substrate exposed, which works well for general-purpose cutting where coating is not required. CNC machinists and tooling technicians are the primary installers and operators of this bit.

This diamond pattern router bit is used in CNC routing and machining applications where a burr-style end type is needed for surface texturing, material agitation, or controlled stock removal. Its small diameter and compact geometry make it well suited for fine detail passes, engraving setups, or applications requiring a 1/8 inch shank tool. It ships individually and is sold as a single unit.

Key Features

• Diamond pattern geometry provides consistent cutting action across the flute surface
• Burr end type suited for surface texturing and aggressive material removal
• 0.125 inch cutter diameter fits standard 1/8 inch CNC collets
• 0.5 inch length of cut allows focused engagement in shallow to mid-depth passes
• 1.5 inch overall length keeps the tool rigid and minimizes deflection
• Bright/uncoated finish compatible with a wide range of general-purpose materials

Compatibility

Designed for use with CNC machines equipped with 1/8 inch collets or compatible toolholders accepting a 0.125 inch shank diameter.

Installation Notes

Installation and operation of this router bit should be performed by qualified CNC machinists or tooling technicians familiar with collet torque procedures and spindle runout requirements. Power down and lock out the CNC machine spindle completely before inserting or removing the bit from the collet. Confirm shank seating depth and collet condition before each use to prevent tool pullout during operation. Always verify spindle speed compatibility with the bit diameter and workpiece material before running the program.
