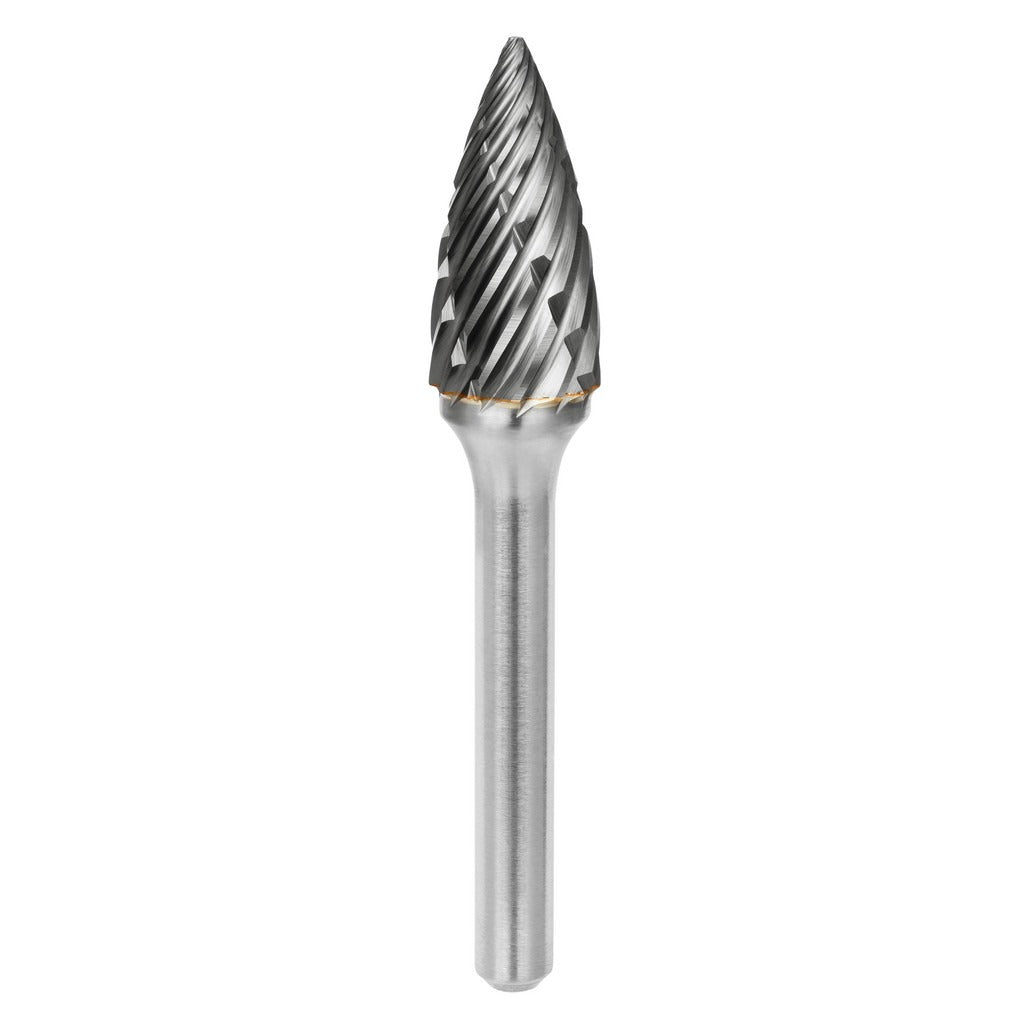

Sgs Pro 19368 Carbide Abrasive Bur Pointed Tree 3/8 in

Product Description

The SGS PRO 19368 is a tungsten carbide abrasive bur with a pointed tree head shape, designed for material removal and shaping in metalworking applications. The uncoated carbide head measures 0.375 inches in cutting diameter with a 0.75-inch length of cut and mounts on a 0.25-inch shank. It runs up to 37,500 RPM and is well suited for deburring, grinding, and contouring work on steel, hardened steel, and cast iron. Machinists, toolroom technicians, and fabricators typically use this bur with a die grinder or rotary tool in production and maintenance settings.

This bur is designed for steel-cut tooth style material removal on ferrous metals including steel, hardened steel, and cast iron. The pointed tree geometry allows access to angled surfaces, tapered cavities, and contoured profiles where flat or cylindrical burs cannot reach. It is appropriate for both production machining environments and job-shop metal prep work requiring precise stock removal on tough materials.

Key Features

• Tungsten carbide head with uncoated finish for durability on ferrous materials
• Pointed tree head shape for access to tapered and angled workpiece profiles
• Steel-cut tooth style optimized for aggressive material removal
• Maximum operating speed of 37,500 RPM
• Standard 0.25-inch shank diameter compatible with common die grinder collets
• Industry specification SG-3 designation for standardized sizing reference

Compatibility

Designed for use with die grinders and rotary tools accepting a 0.25-inch collet. Rated for cutting steel, hardened steel, and cast iron as stated by the manufacturer.

Installation Notes

Installation is performed by machinists or metalworkers familiar with rotary cutting tools. Secure the 0.25-inch shank firmly in the die grinder collet before operation and confirm the tool does not exceed the 37,500 RPM maximum rated speed. Always wear appropriate eye protection and secure the workpiece before engaging the bur. Inspect the carbide head for chips or cracks before each use and replace if damage is found.
