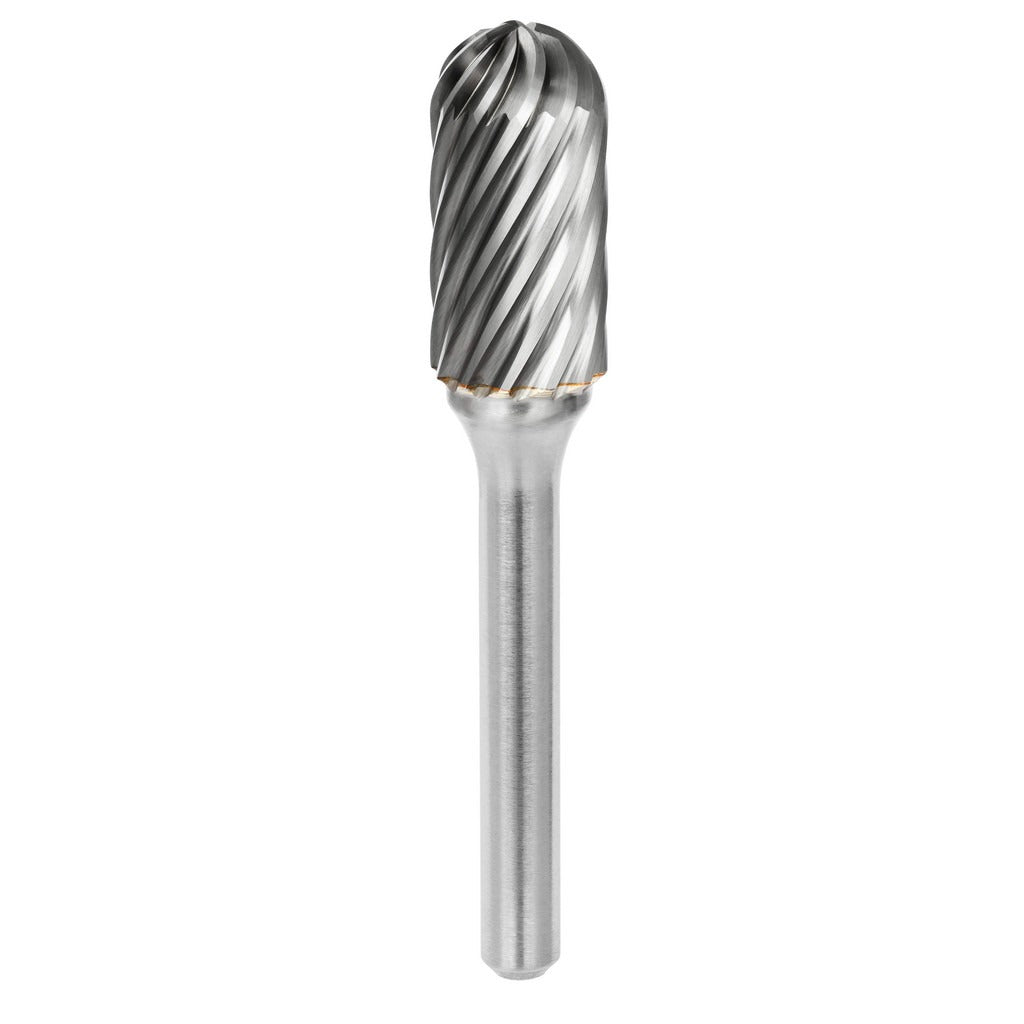

Sgs Pro 19160 Abrasive Bur Ball Nose Cylinder 3/8 in

Product Description

The SGS PRO 19160 is a tungsten carbide abrasive bur with a ball nose cylinder head profile, classified under industry specification SC-3. It features an INOX cut tooth style engineered for aggressive material removal on hard-to-machine metals. The cutting diameter is 0.375 inches with a 0.75-inch length of cut, and the overall tool length is 2.5 inches. The 1/4-inch shank fits standard die grinders and rotary tools used by machinists, fabricators, and maintenance technicians working on stainless steel and titanium components.

This bur is suited for deburring, contouring, and weld preparation on stainless steel and titanium in industrial and fabrication environments. The ball nose cylinder shape allows access to curved surfaces, internal profiles, and blend radii where flat or cylindrical burs cannot reach. It is a single-piece, single-quantity item appropriate for tool crib stock or field service kits in manufacturing, aerospace fabrication, and heavy equipment maintenance applications.

Key Features

• Ball nose cylinder head profile for contouring and internal radius work
• INOX cut tooth style optimized for stainless steel and titanium
• Tungsten carbide head material for hardness and wear resistance
• 0.375-inch cutting diameter with 0.75-inch length of cut
• 1/4-inch shank diameter compatible with standard die grinders
• Rated up to 37,500 RPM for high-speed material removal

Compatibility

Designed for use on stainless steel and titanium workpieces. Fits die grinders and rotary tools accepting a 1/4-inch shank collet. Industry specification SC-3 ball nose cylinder form factor.

Installation Notes

Installation and operation of carbide burs should be performed by machinists or qualified technicians familiar with rotary tool safety. Ensure the die grinder collet is clean and undamaged before seating the shank, and tighten securely to prevent runout. Always verify the tool is rated for the RPM of the grinder before use, and wear appropriate eye and face protection. Do not exceed the 37,500 RPM maximum speed rating.
