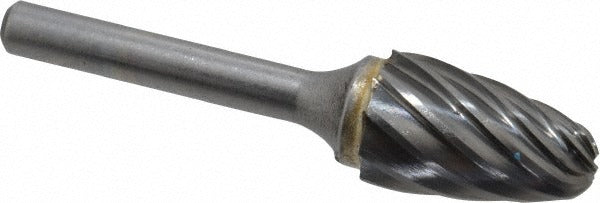

Sgs Pro 19064 SF-6NF Tree Radius Carbide Bur 5/8 in

Product Description

The SGS PRO 19064 is a tungsten carbide abrasive bur in the SF-6NF ball nose tree with radius profile, designed for precision material removal in industrial and fabrication applications. It features an Aluma Cut tooth style, which produces fast, free-cutting action with reduced loading on soft and gummy materials. The 5/8 inch cutting diameter and 1/4 inch shank diameter make it compatible with standard die grinders and rotary tools. With a maximum rated speed of 22500 RPM and an overall length of 2.75 inches, this bur is built for controlled deburring, contouring, and material shaping tasks performed by machinists, fabricators, and toolroom technicians.

This bur is suited for use on titanium, copper, copper alloys, aluminum, and plastic. The Aluma Cut geometry is specifically engineered for non-ferrous metals and soft materials, reducing chip packing and heat buildup during extended use. It is commonly used in production machining, aerospace fabrication, custom metalwork, and plastic part finishing where a radius tree profile is needed to reach curved or recessed surfaces. The 1 inch length of cut provides adequate working depth for most contouring and blending operations.

Key Features

• SF-6NF industry specification ball nose tree with radius head shape
• Aluma Cut tooth style engineered for non-ferrous metals and plastics
• Tungsten carbide head construction for extended tool life
• Maximum operating speed of 22500 RPM
• 5/8 inch cutting diameter with 1 inch length of cut
• 1/4 inch shank fits standard die grinders and rotary tools

Compatibility

Designed for use with standard 1/4 inch collet die grinders and rotary tools. Rated for material removal on titanium, copper, copper alloys, aluminum, and plastic per the SF-6NF industry specification.

Installation Notes

Install the bur securely into a 1/4 inch collet and tighten per the tool manufacturer torque guidance before operation. Always verify the die grinder or rotary tool is rated for at least 22500 RPM before use, and never exceed the bur maximum rated speed. Wear appropriate PPE including eye protection and gloves when operating rotary cutting tools. Inspect the bur for chips or cracks before each use and remove from service if damage is observed.
