Sgs Pro 16700 Abrasive Bur Flame SH-2L6 5/16 Inch

Product Description

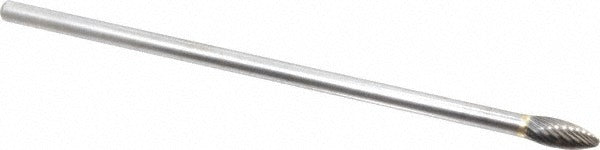

The SGS PRO 16700 is a flame-shaped tungsten carbide abrasive bur designed for material removal, deburring, and shaping in metalworking applications. Built to industry specification SH-2L6, it features a 5/16 inch cutting diameter and a 1/4 inch shank, with an overall length of 6.75 inches and a 0.75 inch length of cut. The single-cut tooth style delivers smooth, controlled stock removal on a wide range of metals. Machinists, tool and die technicians, and fabricators rely on this type of bur for precision work in confined areas where rotary tool access is required.

This bur is suited for use in die grinders and rotary tools across general metalworking, fabrication, and maintenance repair operations. The flame head geometry is well matched to contour work, port matching, and weld blending in both production and field-service environments. It performs in residential shop settings and commercial fabrication facilities alike. The 1/4 inch shank fits standard die grinder collets widely used in industrial and trade applications.

Key Features

• Flame head profile per industry specification SH-2L6 for contour and radius work
• Tungsten carbide construction with uncoated finish for consistent cutting performance
• Single-cut tooth style for smooth material removal with reduced chatter
• 5/16 inch cutting diameter with 0.75 inch length of cut
• 1/4 inch shank fits standard die grinder collets
• Rated up to 45,000 RPM for high-speed rotary tool use

Compatibility

Designed for use with die grinders and rotary tools accepting a 1/4 inch shank collet. Compatible material applications include steel, hardened steel, stainless steel, cast iron, titanium, cermet, nickel, copper, and copper alloys.

Installation Notes

Installation and use of rotary burs should be performed by qualified machinists or trade professionals familiar with rotary cutting tools. Always confirm the tool spindle speed does not exceed the 45,000 RPM rating of the bur before operation. Secure the shank fully in the collet and inspect the bur for damage before each use. Appropriate eye protection and gloves are required when operating rotary cutting tools.
