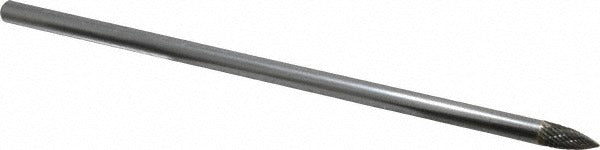

Sgs Pro 16628 Carbide Bur Tree Double Cut 1/4 in

Product Description

The SGS PRO 16628 is a tungsten carbide rotary bur with a tree-with-pointed-end head geometry and a double cut tooth pattern. It is designed for aggressive material removal and detailed deburring in metalworking applications. The bur features a 0.25 inch cutting diameter, a 0.5 inch length of cut, and a 6.5 inch overall length with a 0.25 inch shank. The double cut pattern produces a finer finish than single cut while still removing material efficiently. Machinists, tool and die makers, and fabricators use this bur in die grinders and rotary tools for contouring, shaping, and blending in hard-to-reach areas.

This bur is suited for use on a wide range of metals including steel, hardened steel, stainless steel, cast iron, titanium, nickel, copper, and copper alloys. The tree-with-pointed-end profile is particularly useful for working into recesses, cleaning weld areas, and removing material in tight cavities where flat or cylindrical profiles cannot reach. It is commonly used in fabrication shops, maintenance and repair operations, and precision metalworking environments.

Key Features

• Tree with pointed end head shape for reaching recesses and internal cavities
• Double cut tooth style for efficient material removal with a smoother finish
• Tungsten carbide head construction for hardness and wear resistance
• 0.25 inch shank diameter fits standard die grinder collets
• Rated up to 55000 RPM for use at high rotational speeds
• Compatible with steel, stainless steel, cast iron, titanium, nickel, copper, and copper alloys

Compatibility

Designed for use with die grinders and rotary tools accepting a 0.25 inch shank. Suitable for stock removal, deburring, and finishing on steel, hardened steel, stainless steel, cast iron, titanium, nickel, copper, and copper alloys per industry specification SG-1L6.

Installation Notes

Install the bur shank fully into the collet of the rotary tool or die grinder and tighten securely before operation. Always wear appropriate eye protection and gloves when operating rotary burs at high RPM. Do not exceed the rated maximum of 55000 RPM. Inspect the bur for cracks or damage before each use and replace if any defects are found.
