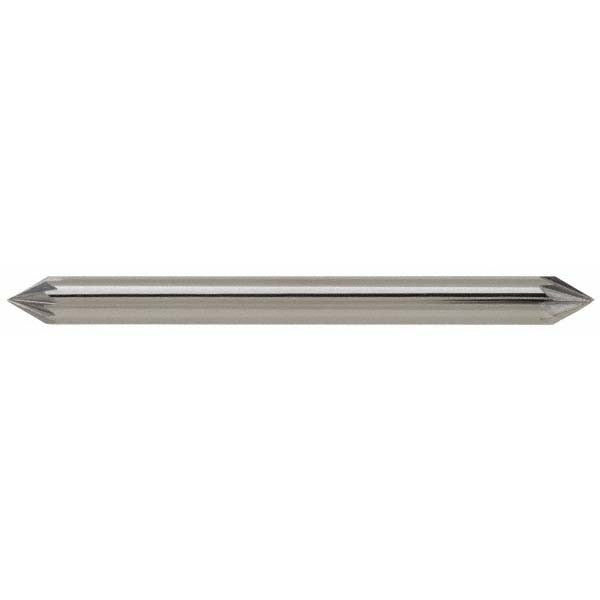

Sgs Pro 15100 Cone Abrasive Bur SK-9 1 in Carbide

Product Description

The SGS PRO 15100 is a single-cut tungsten carbide cone bur designed for precision material removal in metalworking and fabrication applications. Conforming to the SK-9 industry specification, this bur features a 90-degree included angle cone head with a 1-inch cutting diameter and a 1/4-inch shank for compatibility with standard die grinders and rotary tools. The cutting head is uncoated tungsten carbide, delivering consistent edge life across a wide range of ferrous and non-ferrous materials. With an overall length of 2.375 inches and a cutting length of 0.4375 inches, the 15100 is well suited for deburring, chamfering, and contouring operations. Maximum operating speed is 14,000 RPM.

This bur is intended for use on steel, hardened steel, stainless steel, cast iron, titanium, cermet, nickel, copper, and copper alloys. It is commonly used by machinists, tool and die makers, pipefitters, and fabricators performing deburring on weld seams, port matching, or edge chamfering in both shop and field environments. The 90-degree cone geometry makes it particularly effective for countersinking, deburring hole edges, and working into angled or tapered recesses.

Key Features

• SK-9 industry specification cone geometry with 90-degree included angle
• Tungsten carbide head with single-cut tooth pattern for controlled stock removal
• 1-inch cutting diameter and 0.4375-inch length of cut
• 1/4-inch shank fits standard die grinders and rotary tools
• Rated to 14,000 RPM for use with high-speed pneumatic or electric tools
• Compatible with a broad range of ferrous and non-ferrous base materials

Compatibility

Designed for use on steel, hardened steel, stainless steel, cast iron, titanium, cermet, nickel, copper, and copper alloys. Fits any die grinder or rotary tool accepting a 1/4-inch shank bur.

Installation Notes

Install the shank fully into the collet of a die grinder or rotary tool and tighten the collet nut securely before operating. Do not exceed the rated 14,000 RPM maximum speed. Always wear eye protection and appropriate PPE when operating rotary cutting tools. Inspect the bur for chips or cracks before each use and discard any damaged tooling immediately.
