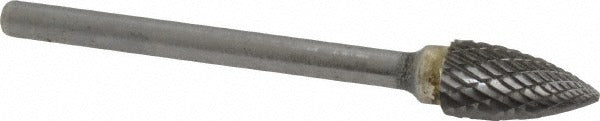

Sgs Pro 14253 Double Cut Carbide Tree Bur 1/8 Inch Shank

Product Description

The SGS PRO 14253 is a double cut carbide abrasive bur with a tree head shape, designed for material removal, deburring, shaping, and surface finishing on metal, hardened steel, cast iron, and similar hard materials. The carbide head delivers consistent cutting performance across a range of applications. With a 1/8 inch shank diameter and 2 inches overall length, this bur fits standard die grinders, rotary tools, and flex-shaft machines used throughout machining, fabrication, and maintenance work. The double cut tooth pattern produces a smoother finish and faster stock removal compared to single cut styles, making it a practical choice for detailed contouring in tight profiles.

The tree head shape makes this bur well suited for working inside curved recesses, port matching, weld cleanup, and contoured surface preparation where a cylindrical or ball bur cannot reach effectively. It is commonly used by machinists, tool-and-die workers, welding fabricators, and maintenance technicians working on metal components. The 1/8 inch shank is compatible with the collet sizes found on most standard pneumatic and electric die grinders used in industrial and shop environments.

Key Features

• Tree head shape for contouring, recessed surface work, and port matching
• Double cut tooth style for faster material removal and smoother finish
• Solid carbide head construction for durability on hard metals
• 1/8 inch shank diameter fits standard die grinder collets
• 0.5 inch head length provides controlled cutting in detailed areas
• Industry specification SG-51 for standardized sizing and fitment

Compatibility

Designed for use with die grinders, rotary tools, and flex-shaft machines accepting a 1/8 inch collet. Conforms to industry specification SG-51.

Installation Notes

Installation is performed by machinists or fabricators using standard die grinder equipment. Ensure the tool is fully powered down and depressurized before inserting or removing the bur from the collet. Secure the shank fully within the collet to the recommended insertion depth and tighten the collet nut firmly before operation. Always wear appropriate eye protection and follow shop safety protocols when operating rotary cutting tools at speed.
