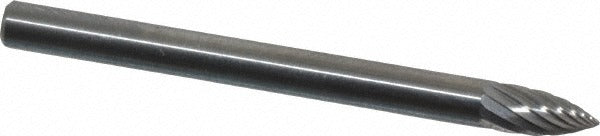

Sgs Pro 14150 Carbide Abrasive Bur Tree 1/8 Inch Shank

Product Description

The SGS PRO 14150 is a single-cut tungsten carbide abrasive bur with a tree-with-pointed-end head geometry, designed for precision material removal in metalworking and fabrication applications. Built to the SG-41 industry specification, it features a 1/8-inch shank diameter and a cutting diameter of 0.125 inches, with a 1/4-inch length of cut and an overall length of 1.5 inches. The tungsten carbide head delivers consistent cutting performance at speeds up to 100,000 RPM. Machinists, tool-and-die technicians, and metal fabricators install this bur in pneumatic or high-speed rotary die grinders for deburring, shaping, and contouring work.

This bur is suited for use on a broad range of materials including steel, hardened steel, stainless steel, cast iron, titanium, cermet, nickel, copper, and copper alloys. It is commonly used in production finishing, weld cleanup, port matching, and tight-clearance deburring where a pointed-tip tree profile is required to reach angled or recessed surfaces. The uncoated tungsten carbide head is appropriate for both light stock removal and detailed contouring passes in professional shop environments.

Key Features

• Tree with pointed end head shape for access to angled and recessed areas
• Single-cut tooth style for smooth material removal and reduced chatter
• Tungsten carbide head rated for use on steel, stainless steel, cast iron, titanium, and copper alloys
• Maximum operating speed of 100,000 RPM
• 1/8-inch shank fits standard die grinder collets
• Meets SG-41 industry specification

Compatibility

Designed for use with pneumatic and electric die grinders accepting a 1/8-inch collet. Suitable for cutting steel, hardened steel, stainless steel, cast iron, titanium, cermet, nickel, copper, and copper alloys as specified by the manufacturer.

Installation Notes

Installation is performed by machinists or metal fabricators using a die grinder with a compatible 1/8-inch collet. Ensure the grinder is fully depressurized or unplugged before inserting or removing the bur. Secure the shank to the full collet engagement depth before operating. Always wear appropriate eye protection and ensure the tool does not exceed the rated maximum RPM of 100,000.
