Sgs Pro 13175 Abrasive Bur Oval Single Cut SE-51

Product Description

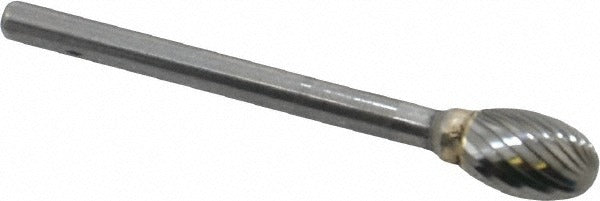

The SGS PRO 13175 is a single-cut tungsten carbide abrasive bur with an oval head profile, conforming to industry specification SE-51. Designed for precision material removal and deburring, this rotary bur attaches to die grinders, flex-shaft tools, and rotary handpieces via a 1/8-inch shank. The oval head geometry makes it well suited for contouring, blending, and working in curved or recessed surfaces. It runs at up to 55,000 RPM and carries a 1/4-inch cutting diameter with a 3/8-inch length of cut. Machinists, tool-and-die workers, fabricators, and maintenance technicians are the primary users of this type of cutting tool.

This bur is intended for use on a broad range of metallic workpieces in both shop and field maintenance environments. It performs on ferrous and non-ferrous materials, making it adaptable across general metalworking, aerospace fabrication, automotive repair, and industrial maintenance applications. Typical tasks include weld cleanup, port work, gasket surface preparation, and edge breaking on machined components.

Key Features

• Oval head profile matches SE-51 industry specification for consistent tooling compatibility
• Single-cut flute pattern produces smooth finishes and ejects chips efficiently
• Tungsten carbide head material provides hardness and wear resistance across demanding materials
• 1/4-inch cutting diameter with 3/8-inch length of cut for controlled material removal
• 1/8-inch shank fits standard die grinder collets and rotary tool chucks
• Rated to 55,000 RPM for use with high-speed pneumatic and electric rotary tools

Compatibility

Designed as an OEM-style replacement or standard tooling option for any die grinder or rotary tool accepting a 1/8-inch shank collet. Compatible with steel, hardened steel, stainless steel, cast iron, titanium, cermet, nickel, copper, and copper alloys as stated by the manufacturer.

Installation Notes

Installation is performed by machinists, fabricators, or maintenance technicians using a standard collet wrench to secure the 1/8-inch shank in the tool chuck. Before inserting or removing the bur, ensure the rotary tool is powered off and fully stopped. Verify that the tool's rated RPM meets or exceeds the bur's 55,000 RPM rating before operation. Always wear appropriate eye protection and follow shop safety procedures when operating rotary cutting tools.
