Sgs Pro 13015 Double Cut Carbide Bur SE-5 Oval

Product Description

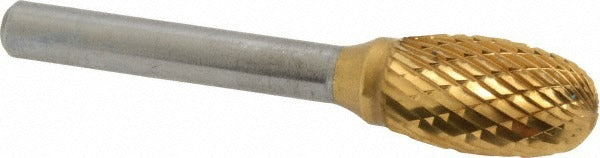

The SGS PRO 13015 is a double cut solid carbide rotary bur in an oval (SE-5) head shape, designed for aggressive material removal and fine finishing in metalworking, deburring, and surface preparation applications. The head measures 0.5 inches in cutting diameter with a 0.875-inch length of cut, mounted on a 0.25-inch shank. A titanium nitride (TiN) coating over the solid carbide head improves hardness and heat resistance, extending tool life in demanding cutting conditions. This bur is used by machinists, tool-and-die makers, and maintenance trades working with ferrous and non-ferrous metals, composites, and hard plastics.

The oval head profile suits contoured surface work, port matching, cavity blending, and weld cleanup in tight or curved areas. The 0.25-inch shank is compatible with standard die grinders and rotary tools commonly used in machine shops, fabrication facilities, and industrial maintenance settings. Double cut flute geometry produces a smoother finish compared to single cut while still removing material efficiently, making it practical for both rough shaping and finish work in a single tool.

Key Features

• Oval (SE-5) head shape for contoured and curved surface applications
• Double cut flute geometry for efficient material removal with a smooth finish
• Solid carbide construction for hardness and wear resistance
• TiN coating improves surface hardness and extends tool life
• 0.25-inch shank fits standard die grinders and rotary tools
• 0.5-inch cutting diameter with 0.875-inch length of cut

Compatibility

Designed for use with die grinders and rotary tools accepting a 0.25-inch shank collet, suitable for metalworking, fabrication, and maintenance applications requiring an SE-5 oval carbide bur.

Installation Notes

Installation is performed by machinists or maintenance technicians using a die grinder or rotary tool with the appropriate 0.25-inch collet. Ensure the tool is powered off and unplugged before inserting or removing the bur. Do not exceed the maximum RPM rating of the host tool. Eye protection and appropriate PPE are required when operating rotary cutting tools.
