Sgs Pro 13000 Carbide Burr SE-5 Oval 1/2 Inch

Product Description

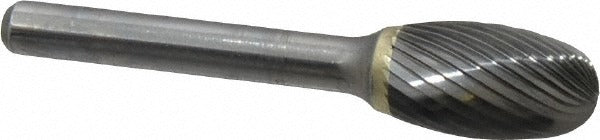

The SGS PRO 13000 is a single-cut tungsten carbide burr in the SE-5 oval head configuration, designed for aggressive material removal and contour finishing in metalworking applications. The 1/2-inch cutting diameter and 7/8-inch length of cut make it well-suited for die grinding, deburring, and shaping tasks across a wide range of ferrous and non-ferrous metals. With a 1/4-inch shank diameter and an overall length of 2-5/8 inches, this burr fits standard die grinders and rotary tools used by machinists, fabricators, and maintenance technicians. Maximum rated speed is 28,000 RPM.

This burr is intended for use on steel, hardened steel, stainless steel, cast iron, titanium, cermet, nickel, copper, and copper alloys. The oval head profile allows access to curved surfaces, recesses, and contoured workpieces where flat or cylindrical profiles are impractical. It is a common tool in weld prep, port work, mold finishing, and general-purpose metal shaping in both shop and field environments. The single-cut tooth style produces a smoother finish compared to double-cut and removes material efficiently without excessive heat buildup on harder alloys.

Key Features

• SE-5 oval head profile for contouring, blending, and accessing recessed areas
• Tungsten carbide construction for hardness and wear resistance across hard metals
• Single-cut tooth style delivers a cleaner finish with controlled material removal
• 1/4-inch shank fits standard die grinders and rotary tool chucks
• Rated to 28,000 RPM for use with high-speed pneumatic and electric grinders
• Uncoated head - no coating to interfere with regrinding or inspection

Compatibility

Designed for use with standard 1/4-inch collet die grinders and rotary tools. Suitable for machining, deburring, and finishing operations on steel, hardened steel, stainless steel, cast iron, titanium, cermet, nickel, copper, and copper alloys per the SE-5 industry specification.

Installation Notes

Secure the 1/4-inch shank fully into a matched collet before operation and ensure the collet nut is properly tightened. Do not exceed the 28,000 RPM maximum rated speed. Always wear appropriate eye protection and secure the workpiece before grinding. Inspect the burr for cracks or chipping before each use and remove from service if damage is found.
