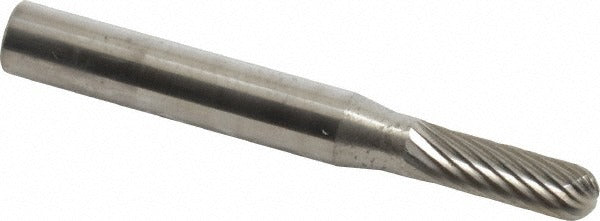

Sgs Pro 12125 SC-14 Ball Nose Cylinder Bur 3/16 Inch

Product Description

The SGS PRO 12125 is a single-cut tungsten carbide abrasive bur in the SC-14 ball nose cylinder profile. It is designed for material removal, deburring, shaping, and finishing operations in metalworking and fabrication applications. The cutting head measures 3/16 inch in diameter with a 5/8 inch length of cut, and the bur runs on a 1/4 inch shank with an overall length of 2 inches. Rated to 75,000 RPM, it is suited for use with high-speed die grinders and rotary tools. The uncoated tungsten carbide head delivers consistent cutting performance across a range of ferrous and non-ferrous materials.

This bur is used in fabrication shops, tool rooms, and maintenance environments where precise metal removal or contouring is required. The SC-14 ball nose cylinder geometry is effective for slotting, profiling, and blending internal radii. Applicable materials include steel, hardened steel, stainless steel, cast iron, titanium, cermet, nickel, copper, and copper alloys. It is a practical choice for machinists, tool and die makers, and maintenance technicians working on both production and repair tasks.

Key Features

• SC-14 ball nose cylinder profile for slotting, profiling, and internal radius work
• Tungsten carbide head provides durability on hard and abrasive materials
• Single-cut tooth style for smooth, controlled material removal
• Rated to 75,000 RPM for use with high-speed die grinders
• 1/4 inch shank fits standard rotary tool and die grinder collets
• Uncoated head compatible with a broad range of ferrous and non-ferrous metals

Compatibility

Compatible with die grinders and rotary tools accepting a 1/4 inch shank. Suitable for use on steel, hardened steel, stainless steel, cast iron, titanium, cermet, nickel, copper, and copper alloys per the SC-14 industry specification.

Installation Notes

Installation and use should be performed by machinists or technicians familiar with rotary cutting tools and die grinder operation. Confirm the collet size matches the 1/4 inch shank before securing the bur. Always power down and disconnect the tool before changing burs. Operate within the rated maximum RPM and wear appropriate eye and face protection during use.
