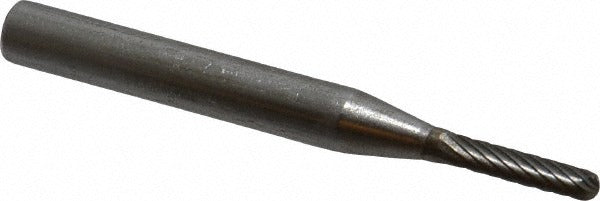

Sgs Pro 12075 SC-12 Ball Nose Cylinder Abrasive Bur

Product Description

The SGS PRO 12075 is a single-cut tungsten carbide abrasive bur in the SC-12 ball nose cylinder profile. It is designed for controlled material removal, deburring, shaping, and finishing in metalworking and fabrication applications. The cutting diameter measures 0.125 inches with a length of cut of 0.625 inches and an overall length of 2.375 inches. The 0.25-inch shank is compatible with standard die grinders and rotary tools. Tungsten carbide construction delivers hardness and heat resistance suited to aggressive stock removal on a wide range of ferrous and non-ferrous metals. Licensed metalworking professionals and tool-and-die machinists are the primary installers and users of this type of bur.

The SGS PRO 12075 is used in machine shops, fabrication facilities, and maintenance environments where precise contouring, cavity work, and edge finishing are required. The ball nose cylinder shape is well suited for blending radii, accessing recessed areas, and finishing contoured surfaces. It performs on steel, hardened steel, stainless steel, cast iron, titanium, cermet, nickel, copper, and copper alloys. It is appropriate for both production and repair scenarios where consistent cut geometry and tool durability are required.

Key Features

• SC-12 ball nose cylinder profile for radius blending and contoured surface work
• Tungsten carbide head for durability on ferrous and non-ferrous metals including hardened steel and titanium
• Single-cut tooth style provides smooth finish with efficient chip clearance
• Rated up to 100,000 RPM for use with high-speed die grinders and rotary tools
• Uncoated head for direct inspection of tool condition during use
• Standard 0.25-inch shank fits common collet sizes in most rotary and die grinder setups

Compatibility

Designed for use with die grinders, rotary tools, and flex-shaft machines fitted with a 0.25-inch collet. Suitable for material removal, shaping, and finishing operations on steel, hardened steel, stainless steel, cast iron, titanium, cermet, nickel, copper, and copper alloys.

Installation Notes

Installation and use should be performed by qualified machinists or metalworking professionals. Ensure the die grinder or rotary tool is powered off and unplugged before inserting or removing the bur. Verify the collet size matches the 0.25-inch shank before tightening. Always wear appropriate eye protection and follow shop safety protocols when operating at high RPM.
