Sgs Pro 11795 Carbide Bur SC-3 Cylinder Double Cut

Product Description

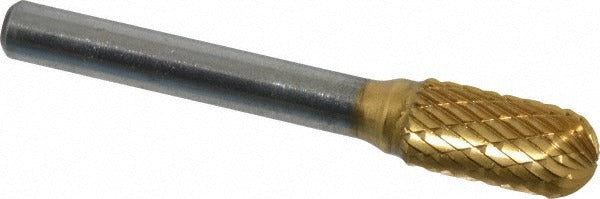

The SGS PRO 11795 is a double-cut tungsten carbide rotary bur designed for aggressive material removal on hard metals and alloys. Built to the SC-3 industry specification, this cylinder-with-radius-end bur features a 3/8 inch cutting diameter and a 3/4 inch length of cut on a 2.5 inch overall length. The 1/4 inch shank fits standard die grinders and rotary tools. The double-cut flute pattern removes material faster than single-cut geometry and produces a smoother finish in a single pass. Machinists, tool-and-die workers, welders, and metal fabricators are the primary users.

This bur is suited for deburring, porting, shaping, and surface blending on a wide range of ferrous and non-ferrous metals. Typical applications include weld cleanup, port matching, casting cleanup, and edge radiusing in fabrication shops, maintenance facilities, and production environments. The cylinder-with-radius end geometry allows access to flat surfaces, bottom corners, and contoured profiles without repositioning the tool. It handles steel, hardened steel, stainless steel, cast iron, titanium, nickel, copper, and copper alloys.

Key Features

• Double-cut flute pattern for fast stock removal and reduced chatter on hard metals
• Tungsten carbide head construction for extended wear life on ferrous and non-ferrous materials
• Cylinder-with-radius end geometry reaches flat surfaces and radiused corners in a single setup
• 1/4 inch shank is compatible with standard die grinders and flexible-shaft rotary tools
• Rated to 37,500 RPM for use with high-speed rotary equipment
• Uncoated head allows visual inspection of wear during use

Compatibility

Designed as an OEM-style replacement or standard-stock bur for use in 1/4 inch collet die grinders and rotary tools commonly found in metal fabrication, maintenance, and machining applications.

Installation Notes

A licensed machinist or experienced fabricator should seat the 1/4 inch shank fully into a clean, undamaged collet before tightening to the tool manufacturer's specification. Always confirm the die grinder or rotary tool is rated at or above the bur's 37,500 RPM maximum before operation. Wear ANSI-rated eye protection and appropriate gloves during use. Do not exceed the rated RPM, use with damaged collets, or operate a bur that shows cracks, missing teeth, or other visible defects.
