Sgs Pro 10428 SA-12 Cylinder Carbide Abrasive Bur

Product Description

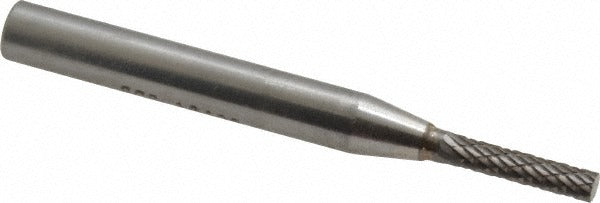

The SGS PRO 10428 is a double cut tungsten carbide abrasive bur with a cylinder head profile, conforming to industry specification SA-12. Designed for aggressive material removal and fine finishing in rotary tool and die grinder applications, this bur features a 0.125-inch cutting diameter and runs at speeds up to 100,000 RPM. The uncoated tungsten carbide head delivers the hardness and edge retention needed for demanding metalworking tasks. With a 1/4-inch shank, it mounts directly to standard die grinders and rotary tools used in fabrication, tooling, and maintenance environments. Machinists, pipefitters, welders, and metal fabricators are the primary users of this type of bur.

This bur is suited for deburring, porting, shaping, and blending operations on a wide range of metals. The double cut pattern removes material efficiently while leaving a relatively smooth finish. It is appropriate for both production and maintenance applications where precision and durability are required. The 5/8-inch length of cut provides adequate reach for most internal and surface work on weld joints, castings, and machined components.

Key Features

• SA-12 cylinder head profile for straight-wall deburring and shaping
• Double cut tooth style for efficient material removal and reduced chatter
• Tungsten carbide head for hardness and long service life
• Rated to 100,000 RPM for use with high-speed die grinders and rotary tools
• 1/4-inch shank fits standard collets on most die grinders
• Uncoated head compatible with steel, hardened steel, stainless steel, cast iron, titanium, nickel, copper, and copper alloys

Compatibility

Compatible material applications include steel, hardened steel, stainless steel, cast iron, titanium, nickel, copper, and copper alloys. Fits die grinders and rotary tools accepting a 1/4-inch shank collet.

Installation Notes

Install in a die grinder or rotary tool with a properly sized 1/4-inch collet and tighten the collet securely before operation. Always wear appropriate eye protection and ensure the workpiece is secured before engaging the bur. Do not exceed the rated maximum RPM of 100,000. Inspect the bur for chips or damage before each use and replace immediately if any defect is found.
