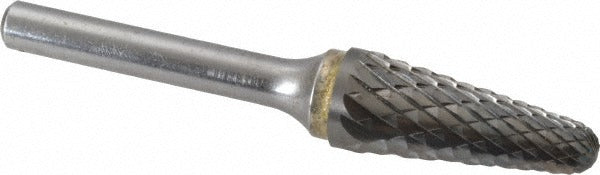

Sgs Pro 10296 Abrasive Bur SL-4 Cylinder 1/4 Inch Shank

Product Description

The SGS PRO 10296 is a tungsten carbide abrasive bur in the SL-4 cylinder profile, designed for aggressive material removal on hard metals. The ball nose cone head shape with Omega Cut tooth style delivers fast stock removal and a consistent finish on difficult workpieces. With a 1/2-inch cutting diameter, a 1-1/8-inch length of cut, and a maximum rated speed of 28,000 RPM, this bur is built for high-speed die grinder and rotary tool work. It fits a standard 1/4-inch shank collet and measures 3 inches overall length. Machinists, fabricators, and tool-and-die techs reach for this type of bur for deburring, porting, and contouring operations where carbide hardness is required.

This bur is suited for use on steel, stainless steel, cast iron, titanium, nickel, copper, and copper alloys. It is a practical choice for weld cleanup, cavity work, and edge preparation in fabrication shops, maintenance environments, and production settings. The uncoated tungsten carbide head performs reliably across the full range of listed materials without the need for cutting fluid in most light-duty passes, though coolant can extend tool life in continuous heavy cuts.

Key Features

• Tungsten carbide head construction for hardness and wear resistance on ferrous and non-ferrous metals
• Omega Cut tooth style designed for rapid material removal with reduced chatter
• Ball nose cone geometry per SL-4 industry specification for profiling and contouring work
• 1/2-inch cutting diameter with 1-1/8-inch length of cut for substantial stock removal per pass
• Rated to 28,000 RPM for compatibility with standard pneumatic and electric die grinders
• 1/4-inch shank fits the most common collet size on rotary tools and die grinders

Compatibility

Designed for use in any die grinder or rotary tool equipped with a 1/4-inch collet. Meets SL-4 DDC industry specification for abrasive bur form and fit.

Installation Notes

Installation is performed by a machinist, fabricator, or maintenance technician using a standard die grinder with a 1/4-inch collet. Secure the shank fully into the collet and tighten to the tool manufacturer's specified torque before operating. Inspect the bur for cracks or chips before each use and do not exceed the rated 28,000 RPM. Always wear appropriate eye protection and secure the workpiece before beginning any grinding or deburring operation.
