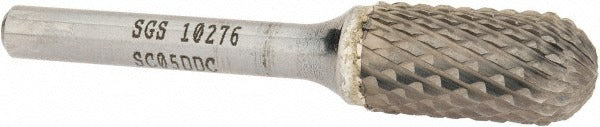

Sgs Pro 10276 SC-5 Ball Nose Cylinder Carbide Bur 1/2 in

Product Description

The SGS PRO 10276 is a tungsten carbide abrasive bur in the SC-5 ball nose cylinder (cylinder with radius) configuration, designed for aggressive material removal on hard metals and alloys. The Omega Cut tooth style provides fast, smooth cutting action with reduced chatter compared to standard double-cut patterns. With a 1/2 inch cutting diameter, a 1 inch length of cut, and a 2.75 inch overall length, this bur is sized for die grinders and pneumatic or electric rotary tools. It is installed by machinists, toolroom technicians, fabricators, and metal finishing professionals who require consistent performance on ferrous and non-ferrous materials.

This bur is suited for deburring, porting, shaping, and surface blending operations on steel, stainless steel, cast iron, titanium, nickel, copper, and copper alloys. It fits a standard 1/4 inch collet, making it compatible with the most common die grinder configurations found in production shops, maintenance facilities, and fabrication environments. The uncoated tungsten carbide head delivers consistent performance across the full range of listed materials without needing a specialized coating for typical shop applications.

Key Features

• SC-5 ball nose cylinder profile for blending, contouring, and radius work in tight cavities
• Omega Cut tooth style reduces vibration and produces a finer finish than standard double-cut geometry
• Tungsten carbide head rated for steel, stainless steel, cast iron, titanium, nickel, copper, and copper alloys
• 1/2 inch cutting diameter with 1 inch length of cut for controlled material removal
• 1/4 inch shank fits standard die grinder collets without adapters
• Maximum 28,000 RPM rated speed for use with high-speed rotary tools

Compatibility

Designed for use in any die grinder or rotary tool accepting a 1/4 inch shank. Suitable for material removal, deburring, and finishing operations on steel, stainless steel, cast iron, titanium, nickel, copper, and copper alloys per the SC-5 DDC industry specification.

Installation Notes

A licensed machinist or qualified fabricator should install and operate this bur in a properly rated die grinder or rotary tool. Always confirm the tool spindle speed does not exceed the 28,000 RPM maximum before operation. Secure the 1/4 inch shank fully into the collet and tighten the collet nut per the tool manufacturer's instructions before use. Wear appropriate PPE including eye protection and hearing protection during operation.
